3 Oukaimeden surface layer meteorology

The meteorological measurements were recorded from 1990 December to 1993 March. A breakdown of the observing station occurred during the months of 1991 September and 1992 November. The automatic station consists of a data acquisition unit provided with several analogue channels connected to meteorological sensors. The parameters measured were wind speed and direction, relative humidity, air temperature and rainfall. All parameters were averaged and, together with extreme values, recorded every hour.

3.1 Air temperature





Table 2: Night-time wind statistics (4541 hr). Percentage of time per sector at Oukaimeden. The three wind speed intervals are respectively A: $\lbrack 0,3$ $\lbrack$; B: $\lbrack 3,6$ $\lbrack$; C: $\lbrack 6,+$ $\infty$ $\lbrack$

	N	NNE	NE	ENE	E	ESE	SE	SSE	S	SSW	SW	WSW	W	WNW	NW	NNW	all
A	0	0.1	0.3	0.5	1.4	5	13.4	7	5	5.6	8	6.9	5	3.7	1.9	0.7	64.5
B	0	0	0	0	0.5	4.1	7.1	4.5	3.2	3.4	2.7	0.9	0.4	0.2	0	0	27
C	0	0	0	0	0.1	2.3	1.3	2.7	1.2	0.8	0.1	0	0	0	0	0	8.5
	0	0.1	0.3	0.5	2	11.4	21.8	14.2	9.4	9.8	10.8	7.8	5.4	3.9	1.9	0.7	100





Table 3: Daytime wind statistics (4650 hr). Percentage of time per sector at Oukaimeden

	N	NNE	NE	ENE	E	ESE	SE	SSE	S	SSW	SW	WSW	W	WNW	NW	NNW	all
A	0	0	0.1	0.2	1.3	2.2	4	3.8	4.2	6.4	8.8	9.8	11.7	12.4	11.8	3.1	79.8
B	0	0	0	0.1	0.9	2.2	1.6	1.4	1.6	1.4	1.6	1	0.7	0.8	0.8	0.4	14.5
C	0	0	0	0	0	1.1	0.9	2.4	0.9	0.4	0	0	0	0	0	0	5.7
	0	0	0.1	0.3	2.2	5.5	6.5	7.6	6.7	8.2	10.4	10.8	12.4	13.2	12.6	3.5	100

The statistical results of the temperature are presented in Figs. 2-4. In Fig. 2, we display monthly all-day mean, minimum and maximum values of the temperature (solid lines). Daytime and night-time mean temperatures are plotted (dotted and dot-dashed lines, respectively). From our data, we can see a seasonal variation: the cold months are October to March and the hot months are April to September. The daily mean temperature is $6.47~^{\circ}$C ( $1.9~^{\circ}$C in winter, $12.36~^{\circ}$C in summer). The absolute minimum recorded during the night in 1992 March is $-12.9~^{\circ}$C and the absolute maximum recorded during the day in 1991 August is $25.6~^{\circ}$C.

The daytime and night-time mean temperatures are $9.48~^{\circ}$C and $4.7~^{\circ}$C, respectively. The daytime minimum is $-3.9~^{\circ}$C recorded in 1991 March and the night-time maximum is $17.5~^{\circ}$C recorded in 1992 August.

The daily variation of the temperature at Oukaimeden is presented in Fig. 3. Note that during the night, the temperature decreases very slowly, due to thermal cooling.

The statistics in temperature difference for two consecutive nights are illustrated in Fig. 4. The mean temperature difference is $1.72~^{\circ}$C. The maximum difference is $9~^{\circ}$C recorded in March. The seasonal variation is also negligible and shows that the stability of the nightly temperature is considerable at both sites.

Following Racine et al. (1991), we have determined the dome ("D'') and mirror ("M'') contribution to the seeing by using:

$$\epsilon_ {\rm D} \simeq 0.1 (\Delta T)^{6/5}\ ({\rm arcsec})$$ (1)

$$\epsilon_ {\rm M} \simeq 0.4 (\Delta T)^{6/5}\ ({\rm arcsec})$$ (2)

where $\Delta T$ represents the temperature difference between the dome (or the mirror) and the external atmospheric temperature.

Because most observatories use air conditioning, the difference in temperature between two consecutive nights might determine the magnitude of the dome and telescope mirror seeing. Let us define this difference $\Delta T$:

$$\Delta T = \langle \mid T_j - T_{j+1} \mid \rangle,$$ (3)

where j is a given night.

Then $\Delta T$ is used in Eqs. (1) and (2). In Table 1, we present the effect of such temperature difference on dome and mirror seeing. The seeing variation is mainly produced by mirror seeing.

3.2 Relative humidity

In Fig. 5, we present the monthly variation of the daytime, night-time and all-day relative humidity. Here we also note a seasonal effect. The all-day mean humidity is 45%. The daytime and night-time mean humidities are 46% and 42%, respectively. The humid months span from February to June, whereas the driest ones are from July to January except October and December.

The cumulative frequency of relative humidity is shown in Fig. 6. The probability of high humidity is weak and given a 90% humidity threshold, only 8% of the observing time would be lost due to this cause.

The daily variation of relative humidity is shown in Fig. 7. It increases during the day with a peak at sunset and then drops rapidly at the beginning of the night. In our experience, this trend is supported by solar observation which shows us that atmospheric transparency is excellent in the morning yet decreases during the afternoon (Benkhaldoun 1993). Low humidity during the night also gives us favourable astronomical conditions.

3.3 Wind speed and direction

Wind statistics are presented in Tables 2 and 3 and Figs. 8-11. The daytime and night-time wind readings are a compilation of a total of 9191 hours (Figs. 8 and 9). The highest wind speed frequency occurs within the A interval for both daytime (79.8%) and night-time (64.5%). At night this wind velocity interval peaks in the SE (21.8%) and SW (10.8%), whereas during the day we see a change in the wind pattern. The wind prevails from WNW direction (13.2%). Within the B interval, the frequency distribution peaks at the night-time in the SE (7.1%) and during the daytime in the ESE (2.2%).

The monthly variation of wind velocity is illustrated in Fig. 10. The data analysis shows a weak seasonal effect. The mean velocity is 2.63 m s^-1. In all of our data, 60% of time, wind is included between 1 to 3 m s^-1 and during 89% it is lower than 5 m s^-1 (Fig. 11). Although the velocity is low enough, we found that the wind can reach a significant amplitude of 50 m s^-1. We checked that a more than 25 m s^-1 wind occurs within 5% of daily maxima and that a 50 m s^-1 maximum occurs in 17 cases out of the 652 daily maxima recorded. We have also analysed the wind velocity in terms of telescope management. Assuming a 15 m s^-1 threshold (beyond which the telescope would cease operation) we lose only 0.2% of our research time, particularly in the winter.

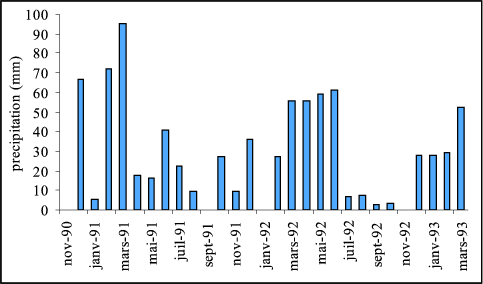

Figure 12: Monthly total precipitation at Oukaimeden from November 1990 to March 1993

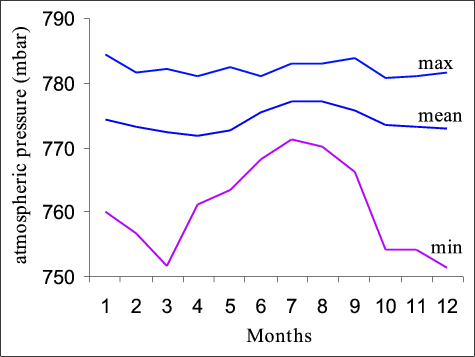

Figure 13: Monthly variation of atmospheric pressure at ORM

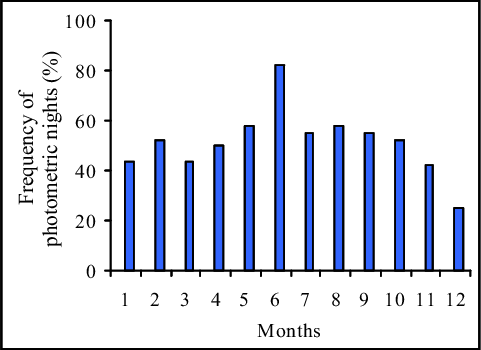

Figure 14: Monthly variation of photometric nights at ORM

3.4 Precipitation

The analysis of precipitation data allows us to establish that the annual mean at Oukaimeden is about 362.5 mm. As shown in Fig. 12, the first three months of 1991 were more rainy than the first quarter of 1992. We found little seasonal change since precipitation varied drastically from year to year; nevertheless, June to November is the driest period.

3.5 Photometric data: Atmospheric transparency

The first results of daytime photometry at Oukaimeden site were published by Benkhaldoun et al. (1993). He found an extinction coefficient of 0.13 mag/air mass and a fraction of clear weather of 65%. Measurements of solar luminosity were performed simultaneously at three wavelengths (550, 589, 700 nm). The instrument used for those observations is a simple Flux Integration Photometer (FIP). For the description of this instrument and data reduction see Benkhaldoun (1993). The photometric quality of Oukaimeden is evaluated by using the least squares method applied to the data set. The atmospheric extinction coefficient is determined from the Bouguer straight line technique (Benkhaldoun 1994).

Using GONG data Hill et al. (1994a,b) found a slightly different result for the clear weather fraction statistics (50%) and the extinction coefficient equals to 0.12 mag/air mass.

If the values found for the extinction are analogous (0.13 and 0.12), it is not the case for the clear time fraction (65% and 50%). This difference is partly systematic explaining by the way of conception of the two instruments, the FIP with his system of diffuser measuring the totality of the light in source of sky whereas the GONG instrument measures the incidental direct radiance.

Indeed, during another observation period, (January 1992 - November 1992), we performed a cross calibration between the two instruments, which gave us a fraction of clear weather at Oukaimeden of 57% for FIP and 53% for GONG (Siher et al. 1996).

Another reason that lowers the fraction of clear weather issued by the GONG instrument lies in the frequency of the breakdowns. The most significant cause of breakdowns is due to power failures that occur during storms.The GONG instrument does not work for several days, when we generally experience clear and favorable weather. Meanwhile, during this time, the FIP instrument is working normally.

A battery gives an autonomy for a limited amount of time to GONG experiment, but it requires an human intervention to start again, after this time out. On the contrary, the FIP experiment automatically switches on after a breakdown. This affects the overall statistics as it has been shown by Benkhaldoun (1994). He demonstrates that, over three different periods (at the begining, in the middle and at the end of the measurement campaign), a decrease of 20% of breakdown periods results in a 10% increase of clear time fraction.

The 1997 IRIS results (Benkhaldoun et al. 1998) are in agreement with the first photometric data published by Benkhaldoun et al. (1993).





Table 4: Night-time wind statistics. Percentage of time in sector (in%) at ORM

	N	NNE	NE	ENE	E	ESE	SE	SSE	S	SSW	SW	WSW	W	WNW	NW	NNW	all
A	4.3	3.7	4.3	3.3	2.3	2.3	4.4	2.9	2.1	1.9	1.6	1.3	1.3	1.7	1.9	2.2	41.5
B	4.9	2.2	3.8	3.7	2	1.3	2.1	2.2	2.5	2.8	3.4	2.5	1.4	2	3.4	5.8	46
C	1.3	0.2	0.3	0.6	0.4	0.2	0.3	0.3	0.8	1.4	2.1	0.9	0.3	0.3	0.7	2.4	12.5
	10.5	6.1	8.4	7.6	4.7	3.8	6.8	5.4	5.4	6.1	7.1	4.7	3	4	6	10.4	100





Table 5: Daytime wind statistics. Percentage of time in sector (in%) at ORM

	N	NNE	NE	ENE	E	ESE	SE	SSE	S	SSW	SW	WSW	W	WNW	NW	NNW	all
A	6.7	4.6	3.8	2.5	1.4	1.3	2.6	4.5	3.7	2.3	2.1	2.2	1.9	2	2.6	3.6	47.8
B	4.2	1.6	2.1	2.2	1.3	1	2	3.3	2.5	2.1	3.3	4.1	2.7	2.2	3.3	4.3	42.2
C	0.8	0.1	0.3	0.3	0.2	0.2	0.3	0.3	0.6	0.9	1.7	1.5	0.6	0.3	0.6	1.3	10
	11.7	6.3	6.2	5	2.9	2.5	4.9	8.1	6.8	5.3	7.1	7.8	5.2	4.5	6.5	9.2	100
