2 Measurements

The times of minima were measured at several observatories:

Kryonerion Astronomical Station of the National Observatory of Athens, Greece - 1.2 m telescope,
Carter Observatory, New Zeeland - 0.6 m telescope,

Ondrejov Observatory of the Czech Academy of Science, Czech Republic - 0.65 m telescope,

ESO La Silla Observatory, Chile - 0.5 m ESO telescope, and

Wendelstein Observatory, University of Munich, Germany - 0.8 m telescope.

The telescope in Ondrejov has been equipped with a CCD camera, the other telescopes with photometers with photomultipliers. The newly measured minima are given in Table 1. Their times were determined by the Kwee-van Woerden (1956) method. Other published times of minima have been used in constructing the O-C graphs, and their table can be obtained by e-mail from PM ( In all cases where primary and secondary minima were measured or published, the phase of secondary minima is unrecognizable from 0.5, i.e., the systems possess circular orbits.

2.1 V337 Aql

The older photoelectric minima were collected by Mayer (1987). It appears that a constant period suits all photoelectric minima. Since the minimum time given in Table 1 is the one with highest accuracy, we take it as the base for new ephemeris:

\mbox{Pri.Min. = HJD}\enspace 24\,48779.5175 + 2\hbox{$.\!\!^{\rm d}$}7338794 \;(\pm14)
\cdot E.\end{displaymath}

Note that rather unrealistic values for the orbital period are given in GCVS (2$.\!\!^{\rm d}$733849) and SAC (2$.\!\!^{\rm d}$733826).

When older photographic minima are considered, it appears that the period continues to shorten, see Fig. 1. The reason of this shortening is unknown. Since light-time effect could be responsible for it, we took several coudé CCD spectra of this binary with the 2.2 m telescope of the German-Spanish Observatory at Calar Alto, in order to find spectroscopic hints for the existence of a third body. However, no third lines were found, i.e., the luminosity of the eventual third body cannot be larger than about 5% of the integral light of the system in the blue spectral region. From the deviations of the O-C data from linearity the minimum mass of the eventual third body might be roughly estimated as about 1.5 $M_{\hbox{$\odot$}}$; the expected luminosity of such a body is of course well under sensitivity of any present spectroscopy.

\includegraphics [width=8.5cm,clip=]{337aql.eps}\end{figure} Figure 1: O-C graph for V337 Aql; plus signs denote photographic data, circles photoelectric data

2.2 V1182 Aql

The O-C column is calculated with the ephemeris by Bell et al. (1987):

\mbox{Pri.Min. = HJD}\enspace 24\,46267.4027 + 1\hbox{$.\!\!^{\rm d}$}621887 \cdot E.\end{displaymath}

The scatter of published times of minima is large, see Fig. 2. In this case lines of a third body were found on spectra taken by RL with the coudé auxilliary telescope feeding the 3.6 m telescope coudé spectrograph at ESO La Silla, and with the Calar Alto 2.2 m telescope and its coudé spectrograph. This system will be thoroughly discussed in a forthcoming paper by Lorenz et al. However, the fast changes of O-C values are inexplicable by a light-time effect. In Sect. 3 it is suggested that these changes might be connected with stability of the light curve.
\includegraphics [width=8.5cm,clip=]{1182aql.eps}\end{figure} Figure 2: O-C diagram of V1182 Aql

2.3 V1331 Aql

V1331 Aql is a detached early B-type binary, for which period and minimum times were published by Lorenz et al. (1991). The O-C values presented in Table 1 were calculated using the ephemeris given in that paper:

\mbox{Pri.Min. = HJD}\enspace 24\,42610.0581 + 1\hbox{$.\!\!^{\rm d}$}3641953 \cdot {E}.\end{displaymath}

UBV light curves were published by Lorenz et al. (1990). A detailed study of this system by Lorenz et al., including absolute dimensions derived from a recently established radial velocity curve and the light curve analysis, is in preparation.

2.4 IU Aur

New times of minima of this well-studied three-body system (Drechsel et al.  1994) should precise the period of the third body; theory also asks for a long-period (335 years) change of the orbital period (Mayer 1983). O-C values were calculated according to the ephemeris

\mbox{Pri.Min. = HJD}\enspace 24\,38448.4068 + 1\hbox{$.\!\!^{\rm d}$}81147435 \cdot {E}\end{displaymath}

and phases in the third-body orbit according to

\mbox{Phase = (HJD$-$2438579)}/294.3\end{displaymath}

(see Mayer 1987). Two minima given in Table 1 fit the older values of O-C (and the theoretical curve given in Fig. 3 of Mayer 1990) very well, so no changes of periods in the orbit of the eclipsing pair or in the orbit of the third body are apparent.

2.5 QZ Car

This eclipsing variable is a part of a multiple system (see e.g. Morrison & Conti 1980). The period of this variable is very close to 6 days, which means that minima can be measured well only in a limited interval of geographic longitudes in a given year. The observations published by now do not comprise any detailed measurements of the deepest part of a minimum of the QZ Car light curve. In Fig. 3 such measurements obtained at the Carter Observatory are plotted. These measurements were reduced using HD 93131 (a WR star, with V=6.50, B-V=-0.03 and U-B=-0.88) as the comparison star. This star, used as the comparison star also in the discovery paper by Walker & Marino (1972) however might be slightly variable, the variability being of the order of 0$.\!\!^{\rm m}$01; note that Morrison & Conti recommend HD 93502. The time of the minimum calculated from these measurements is the most precise time known by now, so a new ephemeris is suggested (the period is according to Mayer et al. 1992):

\mbox{Pri.Min. = HJD}\enspace 24\,49422.039 + 5\hbox{$.\!\!^{\rm d}$}99857 \cdot {E}.\end{displaymath}

In the first part of the year 1998, the minima of QZ Car will be observable in South America.

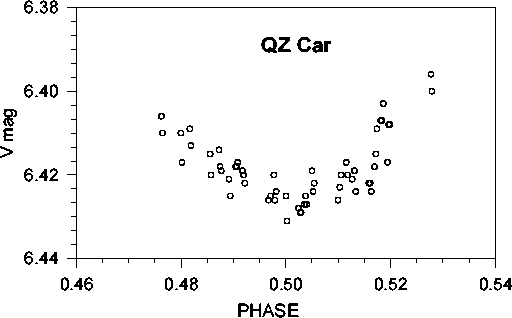

\includegraphics [width=8.5cm,clip=]{qzcar.eps}\end{figure} Figure 3: V magnitudes for QZ Car during a primary minimum

2.6 AH Cep

This bright detached eclipsing O-type binary, which is of special interest because of the pronounced light-time effect it displays, was thoroughly discussed by Drechsel et al. (1989). Here, 10 new minima published by other authors, which deviate systematically from the light-time effect curve as given in Fig. 3 of that study, were used to calculate a new set of the light-time effect parameters (see Table 2). The light-time effect curve corresponding to these parameters is shown in Fig. 4. The minima observed after E=6000 approximately follow a linear ephemeris

\mbox{Pri.Min. = HJD}\enspace 24\,34989.676 + 1\hbox{$.\!\!^{\rm d}$}774715 \cdot {E};\end{displaymath}

this ephemeris can be used to forecast minimum times in several next years.

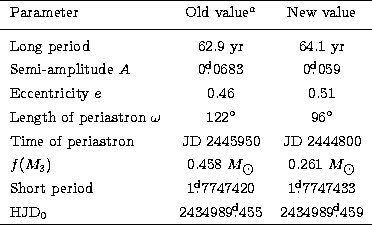

Table 2: Parameters of the light-time effect in the AH Cep system

Parameter & Old value$^a$\space & New value \\ \noa...
 ...d}$}455$\space & $2434989\hbox{$.\!\!^{\rm d}$}459$\space \\ \hline\end{tabular}

a according to Drechsel et al. (1989).

\includegraphics [width=8.5cm,clip=]{ahcep.eps}\end{figure} Figure 4: O-C diagram for AH Cep. The curve corresponds to the light-time effect described by parameters given in Table 2; plus signs are photographic, circles photoelectric data

2.7 AQ Cir

Except for the discovery paper (Hoffmeister 1943), this star was never studied. In GCVS the spectral type is given as OB, however, the source of this classification is unknown. There is a star No. 3268 in the catalogue Luminous Southern Stars (Stephenson & Sanduleak 1971), with type OB(+)h, only 3 arcmin away; we used this star as the comparison star. GSC numbers, J2000 coordinates and magnitudes of both stars are:
AQ Cir: GSC 9015.0071, CPD -64$^\circ$2941
$14^{\rm h} 37^{\rm m} 19.89^{s} \quad $-$64\hbox{$^\circ$}45' 23\hbox{$.\!\!^{\prime\prime}$}8 \qquad 11\hbox{$.\!\!^{\rm m}$}57$
comparison: GSC 9015.0147, CPD -64$^\circ$2939
$14^{\rm h} 37^{\rm m} 10.20^{\rm s} \quad -64\hbox{$^\circ$}48' 04\hbox{$.\!\!^{\prime\prime}$}3 \qquad 10\hbox{$.\!\!^{\rm m}$}74$.
\includegraphics [width=8.5cm,clip=]{aqcir.eps}\end{figure} Figure 5: AQ Cir, measurements in B filter

Hoffmeister gives 7 times of minimum light and period 0$.\!\!^{\rm d}$57284 (as he remarks, the true period is probably twice as long). From his original data it appears that the accuracy of the period is about $\pm$ 0$.\!\!^{\rm d}$00002 ; this means that at present, the epoch number is not known unambiguously. The large magnitude difference between the variable and comparison given in GSC means that in the time of exposition (JD 2446940.58) the variable had to be close to a minimum. We measured a part of the light curve covering a phase range after a minimum, and one can estimate when the minimum had appeared - perhaps at about HJD 2449012.67$\pm$.05. Unfortunately, no certain conclusion concerning the period can be reached, and further measurements are necessary. We present our measurements in Fig. 5 in order to facilitate the determination of the period (note that the GSC magnitudes correspond to V magnitudes; we measured B values).

2.8 V382 Cyg

Older minima of V382 Cyg observed before the year 1990 are listed by Mayer (1980) and MWTN. Several times of minima were published recently, namely by Agerer (1991, 1992, 1993, 1994, 1996) and by Agerer & Hubscher (1995); we have also measured three more. The column O-C is calculated with ephemeris by Mayer et al. (1986):

\mbox{Pri.Min. = HJD} \enspace 24\,36814.7703 + 1\hbox{$.\!\!^{\rm d}$}885516 \cdot {E}.\end{displaymath}

During the time interval covered by observations the period has considerably lengthened (Mayer 1980). However, it appears that the period changed last around E=4700, but then it has been constant, so the presently valid ephemeris can be written as

\mbox{Pri.Min. = HJD}\ 24\,36814.680 (\pm 8) + 1\hbox{$.\!\!^{\rm d}$}
8855328 (\pm 14) \cdot {E}.\end{displaymath}

According to this ephemeris the column (O-C)1 of Table 1 has been calculated and Fig. 6 drawn. The photoelectric times of minima in the interval of epochs from 0 to 4700 fit also a linear ephemeris:

\mbox{Pri.Min. = HJD}\enspace 24\,36814.772 \;(\pm 3) + 1\hbox{$.\!\!^{\rm d}$}
8855143 \;(\pm 9) \cdot {E}.\end{displaymath}

\includegraphics [width=8.5cm,clip=]{382cyg.eps}\end{figure} Figure 6: V382 Cyg, (O-C)1 diagram. Plus signs are photographic, circles photoelectric data
