5. The tex2html_wrap_inline7221) line in the survey



Because of the large bandwidth of the AOS, covering tex2html_wrap_inline7223 , the tex2html_wrap_inline7225 transition of isocyanic acid (HNCO) at 109.905573 GHz (Lovas 1992), which corresponds to a velocity shift of -337.5  with respect to the tex2html_wrap_inline5241 line frequency, fell into the range of the spectrometer as long as the of the emission was not very negative.

5.1. Introductory notes on HNCO

HNCO is a molecule with a slight asymmetry caused by the protrusion of the hydrogen atom and it has an unusual energy structure: The K-1>0 ladders of rotational levels lie tens of degrees K above the corresponding levels in the K-1=0 ladder. Hence, nearly all HNCO should be in states of the K-1=0 ladder if the molecule is collisionally excited. In this case, the two level model of Jackson et al. (1984) indicates that the H2 density has to be at least tex2html_wrap_inline7239  and is typically tex2html_wrap_inline7241 . Thus, if excited collisionally HNCO is a very high density tracer. On the other hand, the lowest K-1=1 levels are separated from the lowest K-1=0 levels by energies which correspond to far-infrared (FIR) wavelengths. Thus, a significant population in the K-1>0 levels is a clear indication of radiative instead of collisional excitation. See Winnewisser et al. (1976) for a detailed study of the molecular parameters of HNCO.

HNCO was first detected in SgrB2 (Snyder & Buhl 1972). Subsequent observations in the Galactic disk (Jackson et al. 1984) show the tex2html_wrap_inline7225 transition to be distinctly weaker than the tex2html_wrap_inline5241 line. The abundance found for disk clouds roughly agrees with chemical models (Iglesias 1977; Huntress & Mitchell 1979), whereas the emission in SgrA (Armstrong & Barrett 1985) and SgrB2 (Churchwell et al. 1986; Cummins et al. 1986) is more than an order of magnitude stronger than expected. At least in SgrB2, HNCO seems to be mainly excited by FIR radiation.

Throughout the Galactic center, there is, however, a large variation in the tex2html_wrap_inline7253 ratio. From a sample of 34 clouds in the inner 500 pc of the Galactic center region, Hüttemeister (1993), Chapter 5, found both low values, < 0.2, for this intensity ratio, similar to those found for the Galactic Disk by Jackson et al. (1984), and high values of 3 to 5, as found in SgrA by Jackson et al. In addition, Hüttemeister (1993) could not find any correlation between clouds with strong HNCO emission and IRAS point sources which might be a possible indicator for the presence of strong (local) FIR radiation.

5.2. Presentation of the HNCO data

For the full set of survey spectra refer to the presentation of the 18 spectra in Fig. 4 (click here) of Sect. 4 (click here). These spectra includes the complete bandwidth of the backend so that the tex2html_wrap_inline5371) line is also visible (with the mentioned shift in the velocity scale of -337.5 ).

5.2.1. The integrated intensity

In Fig. 10 (click here), the integrated intensity is plotted as a contour map, covering the velocity range from -37.5 to +137.5 . This is the complete emission range of the tex2html_wrap_inline5371) line which is covered by the spectra. Toward negative velocities this is limited by the edge of the spectrometer. Toward positive velocities there is no confusion with the 18 emission, as can be seen in the lv-plots, in particular in the latitude cuts, of tex2html_wrap_inline5241 (see Figs. 7 (click here) and 8 (click here)) where no tex2html_wrap_inline5371) emission appears at velocities higher than +137.5  (which corresponds to -200  in tex2html_wrap_inline7277. Apart from the mentioned differences, Fig. 10 (click here) is produced in the same way as Fig. 5 (click here).

  figure1660

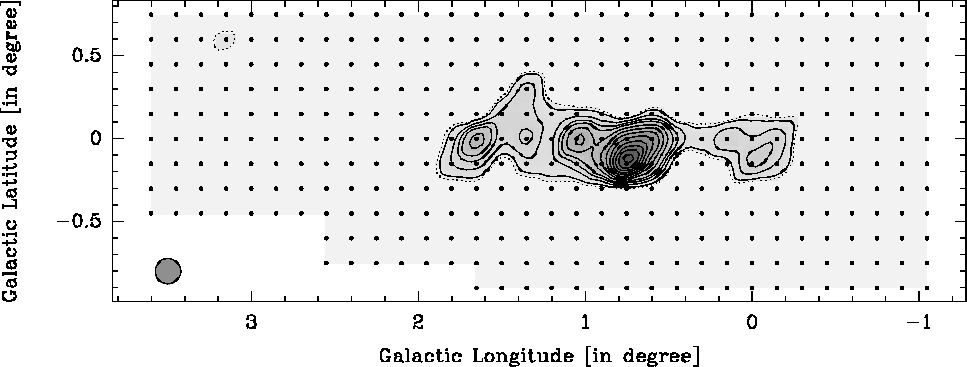

Figure 10: The integrated intensity of the Galactic center region in tex2html_wrap_inline5371). The velocity over which the intensity is integrated ranges from -37.5 to +137.5 . The solid contour levels are 2.4, 5.0, 7.5, and from 10.0 to 42.0 in steps of 4.0 K where the lowest level is the 3tex2html_wrap_inline6785-value. The dashed contour is at 1.6 K which is the tex2html_wrap_inline5767-value. The circle in the lower left corner of the plot indicates the beam size of 9tex2html_wrap54172

Most notably, the tex2html_wrap_inline5371) emission is much more restricted to the Galactic plane than the tex2html_wrap_inline5241 emission. In general, it appears abruptly at b = -0tex2html_wrap538115 but is not visible at more negative latitudes. Similarly, it disappears abruptly at latitudes more positive than b = 0tex2html_wrap53810; only in the area of SgrD some emission appears at higher latitudes. The strongest source by far is SgrB2. In relation to the other sources, SgrB2 is even more prominent in HNCO than in tex2html_wrap_inline5225. It is not clear to what degree systematic effects at the edge of the spectrometer hide emission features. Therefore, even though no emission at negative velocities was found, some emission might be present. This could be the reason for the seemingly complete absence of SgrC and could also have weakened the emission of SgrA. In addition, this could, at least partly, be the reason for the smaller b-extension of HNCO; as one can see from Fig. 6 (click here), the b-extension of tex2html_wrap_inline5241 at negative velocities is larger than at positive velocities. Similar to tex2html_wrap_inline5225, SgrD (the l=1tex2html_wrap53815-complex of Bally et al. 1988) peaks at about (l=1tex2html_wrap53810, b=0tex2html_wrap53810) and has an arc-like extension to (l=1tex2html_wrap538135, b=+0tex2html_wrap53814). In the area of l=1tex2html_wrap53815 to 1tex2html_wrap538185 and b=-0tex2html_wrap538125 to +0tex2html_wrap53811, there appears a fairly strong emission feature which peaks at (l=1tex2html_wrap538165, b=0tex2html_wrap53810). This feature -- hereafter called HNCO-1.65-0.0 -- is rather interesting because it has only a very weak and barely detected counterpart in tex2html_wrap_inline5225 peaking at (l=1tex2html_wrap538175, b=-0tex2html_wrap538115). Especially at the peak position of the HNCO emission, no tex2html_wrap_inline5225 is visible.

  figure1695

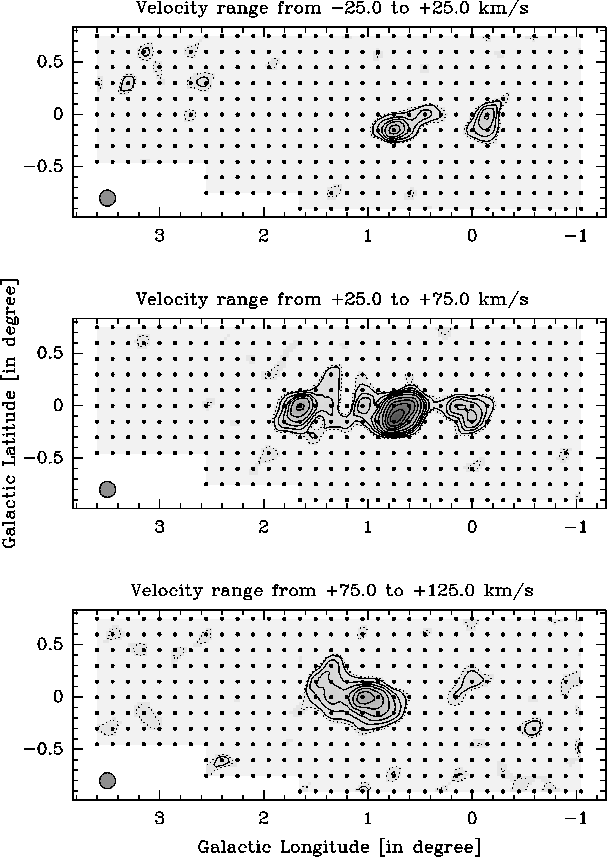

Figure 11: The integrated intensity of the Galactic center region, in tex2html_wrap_inline5371), in velocity intervals of 50  width. The solid contour levels start at 1.3 K, which is the tex2html_wrap_inline5473-level, continue with 2.7, 4.2, 6.0, and 9.0 K and then increase in steps of 5.0 K. The dashed contour is at 0.8667 K which is the tex2html_wrap_inline5767-value. The circle in the lower left corner of the plots indicates the beam size of 9tex2html_wrap54172. In the top panel the integrated intensity of the velocity range from -25.0 to +25.0  is plotted, in the middle panel the velocity ranges from +25.0 to +75.0 , and at the bottom the velocity range from +75 to +125.0  is displayed

  figure1707

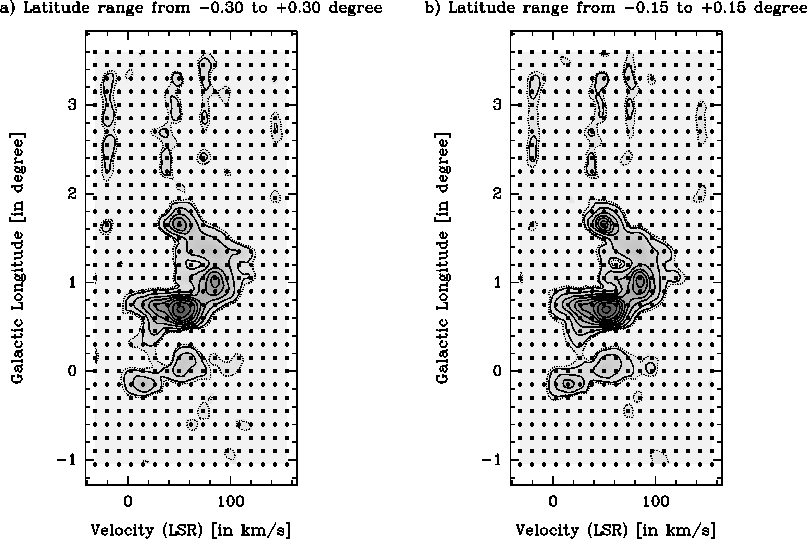

Figure 12: Longitude-velocity plots showing the velocity distribution of the tex2html_wrap_inline5371) emission. a) The velocity distribution in the latitude range from -0tex2html_wrap538130 to +0tex2html_wrap538130 which covers the complete HNCO emission area. The solid contour levels range from 0.018, 0.04 to 0.22 in steps of 0.03 Karcdeg where the lowest level is the tex2html_wrap_inline5473-value. The dashed contour is at 0.012 Karcdeg which is the tex2html_wrap_inline5767-value. b) The velocity distribution in the latitude range from -0tex2html_wrap538115 to +0tex2html_wrap538115 which covers the major HNCO emission area. The solid contour levels range from 0.0141, 0.03 to 0.205 in steps of 0.025 Karcdeg where the lowest level is the tex2html_wrap_inline5473-value. The dashed contour is at 0.0094 Karcdeg which is the tex2html_wrap_inline5767-value

In Fig. 11 (click here), the integrated intensity of the
[4] tex2html_wrap_inline5371) line is plotted in velocity intervals of 50  width. Because of the limitation in velocity due to the edge of the spectrometer band toward negative velocities and due to the lack of emission at higher positive velocities only the channels of 0 , +50 , and +100  are plotted. Apart from that, the plots are produced as in Fig. 6 (click here).

  figure1725

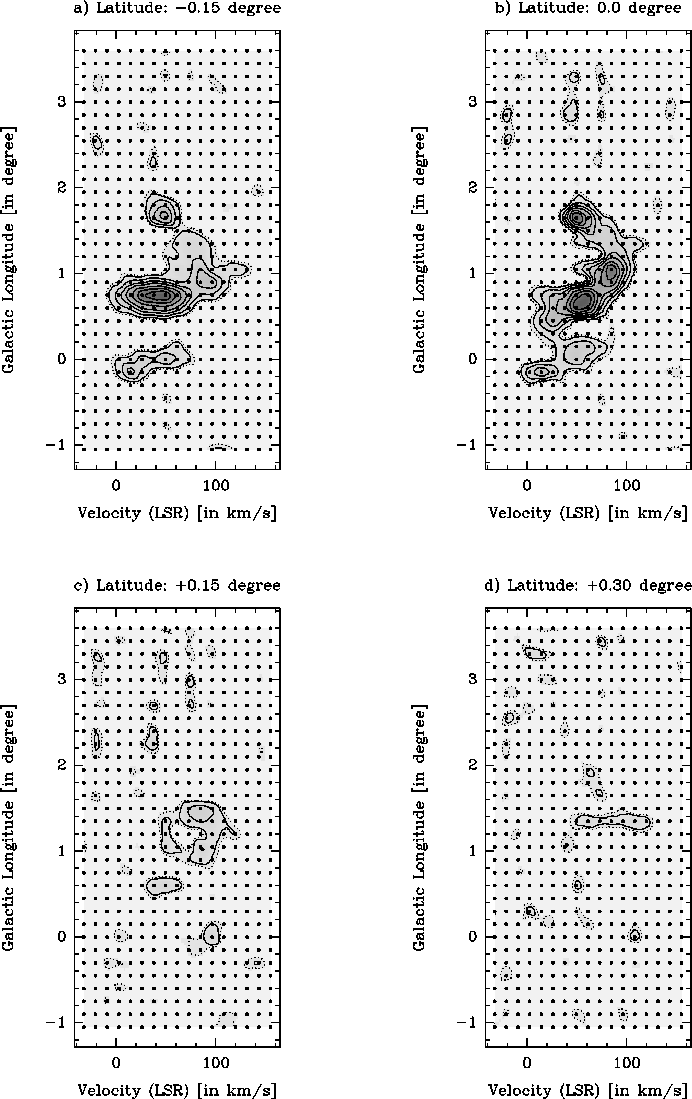

Figure 13: Longitude-velocity plots of cuts at single b showing the (smoothed) spectra of the tex2html_wrap_inline5371) emission in a contour map representation. The solid contour levels start at 0.0081 Karcdeg (corresponding to 0.054 K), which is the tex2html_wrap_inline5473-level, continue with 0.017 and 0.028 Karcdeg, and then increase from 0.04 Karcdeg in steps of 0.02 Karcdeg. The dashed contour is at 0.0054 Karcdeg (corresponding to 0.036 K) which is the tex2html_wrap_inline5767-value. a) In the upper left panel, the lv-plot at b = -0tex2html_wrap538115 is shown. b) In the upper right panel, the lv-plot at b = 0tex2html_wrap53810 is shown. c) In the lower left panel, the lv-plot at b = +0tex2html_wrap538115 is shown. d) In the lower right panel, the lv-plot at b = +0tex2html_wrap538130 is shown

At 0 , only little HNCO is visible, in contrast to C18O which is widespread and uniformly distributed at this velocity. However, distinct but limited emission regions are visible at SgrA (l=0tex2html_wrap53810, b=0tex2html_wrap53810) and at (l=0tex2html_wrap538175, b=-0tex2html_wrap538115) somewhat east of SgrB2. The latter region has an extension to (l=0tex2html_wrap53815, b=0tex2html_wrap53810). These regions coincide with the strongest emission regions in C18O. Because of the reasons mentioned above, the emission from SgrC and a larger b-extension might be systematically suppressed. However, this cannot explain the more limited extension in l of the HNCO emission at this velocity, because the emission at higher positive longitudes tends to have positive velocities. Thus, this point supports the idea that HNCO is more restricted to limited areas than tex2html_wrap_inline5225. Emission related to Clump 2 seems to appear in some isolated spots, but it seems possible that these features which are just barely rising above the 3tex2html_wrap_inline6785-level are introduced by effects caused by the edge of the backend.

At 50 , SgrB2 is, as in tex2html_wrap_inline5225, by far the most prominent emission feature. It peaks at (l=0tex2html_wrap53817, b=-0tex2html_wrap53811) which is somewhat (but not significantly) further to the southeast than in the respective tex2html_wrap_inline5225 plot (Fig. 6 (click here)). The integrated intensity of more than 30 K at this peak position is twice as high as in the tex2html_wrap_inline5225 plot. The second strongest source is HNCO-1.65-0.0 which appears only within this velocity interval. As in the tex2html_wrap_inline5225 plot, SgrA and D are present with clear emission signatures, but in comparison to SgrB2, they seem rather weak. In addition, the eastern part of SgrD is missing due to an emission free valley at l=1tex2html_wrap53812. SgrC is not visible, but weak emission could be hidden due to effects caused by the edge of the backend. In contrast to tex2html_wrap_inline5225, Clump 2 is not visible in HNCO.

At 100 , SgrD with the arc-like extension (l=1tex2html_wrap53815-complex) to (l=1tex2html_wrap538135, b=+0tex2html_wrap53814) is, as in tex2html_wrap_inline5225, the dominant feature. The shape and extension are nearly the same as in tex2html_wrap_inline5225, only the extension toward SgrB2 is absent. Also as in tex2html_wrap_inline5225, emission is visible slightly north of SgrA. In contrast to tex2html_wrap_inline5225, Clump 2 is not visible in HNCO.

5.2.2. Longitude-velocity plots

In Fig. 12 (click here), we have plotted the intensity integrated over two latitude ranges showing the velocity distribution of the tex2html_wrap_inline5371) emission. In part a) of the figure, the latitude ranges from -0tex2html_wrap538130 to +0tex2html_wrap538130 covering the complete b-extension of the HNCO emission. In part b) of the figure, the latitude integral from -0tex2html_wrap538115 to +0tex2html_wrap538115, which covers the major HNCO emission area, is shown.

In general, both plots show the same features. Because the HNCO emission is concentrated toward the plane, the emission features are more prominent in plot b). There is no emission near  = 0 . The 3-kpc-arm (Rougoor & Oort 1960) is beyond the edge of the spectrometer band. The diagonal chain of emission centers which is very prominent in tex2html_wrap_inline5225 is only represented by SgrA, SgrB2, and SgrD. In HNCO, this feature resembles a spiral, starting in the weak emission extending from SgrA to (tex2html_wrap_inline6705tex2html_wrap538105, tex2html_wrap_inline6721 ), continuing through SgrA itself with a peak at (tex2html_wrap_inline6693tex2html_wrap538115, tex2html_wrap_inline6709 ), turning toward positive longitudes and velocities for SgrB2 (tex2html_wrap_inline6705tex2html_wrap53817, tex2html_wrap_inline7649 ), to SgrD (tex2html_wrap_inline6717tex2html_wrap53810, tex2html_wrap_inline7655 ), and turning back toward lower velocities for HNCO-1.65-0.0 at (tex2html_wrap_inline6717tex2html_wrap538165, tex2html_wrap_inline6715 ). The lines of weak emission which appear at -20 , +40 , and +75  in the longitude range from 2tex2html_wrap538125 to 3tex2html_wrap538150 (Clump 2 area) are dubious because these are visible neither in the contour plot of the total integrated intensity (Fig. 10 (click here)) nor in the channel maps (Fig. 11 (click here)). In addition, such streamers of emission at these velocities are not found for any other molecular line.

In Fig. 13 (click here), we show the intensity at selected latitudes, analogous to Fig. 6 (click here). The latitude cuts range from b = -0tex2html_wrap538115 to b = +0tex2html_wrap538130 covering the most interesting features.

At b = -0tex2html_wrap538115, the emission features show similarity to the features integrated over latitude in Fig. 12 (click here) but some distinct deviations are visible. SgrB2 appears as a rift-like ellipsoidal maximum at l=+0tex2html_wrap538175, with v ranging from +30  to +50 . There is no connection between SgrB2 and the SgrA features. The maximum of SgrD is shifted to (tex2html_wrap_inline6705tex2html_wrap53819, tex2html_wrap_inline6721 ), and the connection to HNCO-1.65-0.0 is rather diffuse and only barely tracing a spiral.

At b = 0tex2html_wrap53810, the emission features are very close to what is visible in Fig. 12 (click here) but more prominent. Especially the spiral structure is more emphasized, and it is clear from this plot that the SgrA emission at (tex2html_wrap_inline6693tex2html_wrap538115, tex2html_wrap_inline6709 ) is not part of the spiral-like structure in the lv-space.

At b = +0tex2html_wrap538115, nearly all tex2html_wrap_inline5371) emission has disappeared. Only in the area near SgrD (the 1.5-complex) there is some weak but widespread emission present. In addition, SgrB2 is marginally visible.

At b = +0tex2html_wrap538130, almost no HNCO emission is present. It is not clear if the extended line of emission at l=+1tex2html_wrap538135, ranging in v from +50  to +120 , is real but there is no obvious reason to doubt it. In addition, a weak counterpart in tex2html_wrap_inline5225 exists.
