2. Observations

The observations were made with the telescope 0.9 m Dutch + CCD in April/May 1995 at La Silla, Chile (European Southern Observatory). We used the following systems or interference filters:

System/ ESO No. Peak Band-
filter wavelength width
nm nm
B 419 438.4 101.9
V 420 529.3 116.9
R 421 599.4 163.8
tex2html_wrap_inline868 688 500.5 5.7
tex2html_wrap_inline814 *)387 654.6 8.1

*) + [NII] em.-lines at 6548 and very little at 6584 Å.

We made both long integrated frames in order to find faint outer envelopes (haloes), and short integrations with the aim of comparing FWHM in x and y directions of the object with those of surrounding stars in order to find small envelopes. The list of observed objects is given in Table 1 (click here). We observed 17 objects, mainly proto-PN and stellar PN (11 objects), but also some symbiotic stars, emission-line stars and old novae. The small planetary nebulae Hb 6 and IC 4997 were observed for comparison. The remark "paper" in this table means that a separate paper is being planned on the respective object.

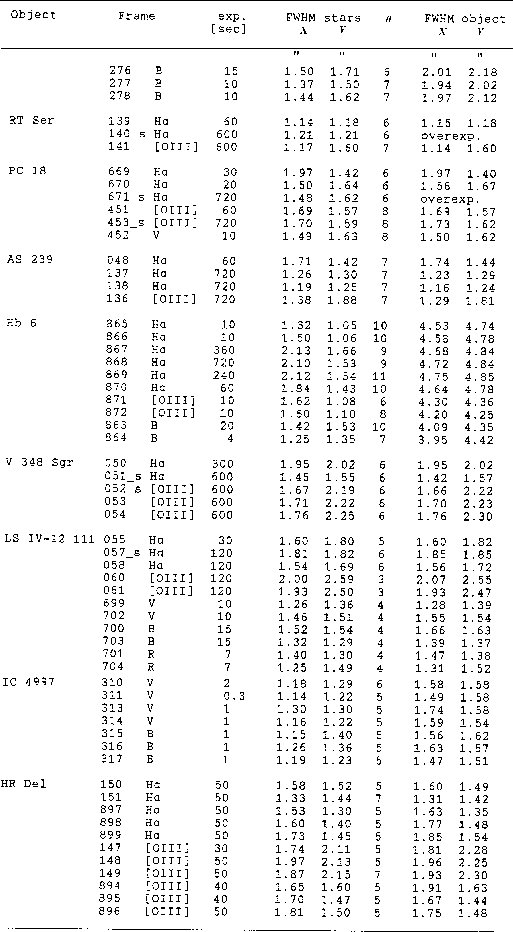

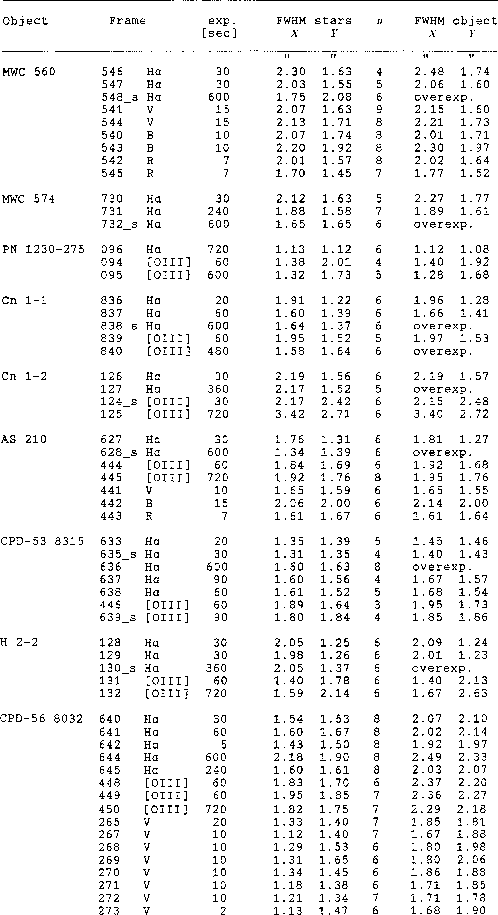

For the programme objects we give in Table 2 (click here) the list of individual frames (altogether 119) with the respective FWHM in both directions as well as FWHM of stars in the vicinity (n is the number of stars used, total n=737). The mean value of FWHM for stars is tex2html_wrap_inline888 and tex2html_wrap_inline890 in the x and y direction, respectively. These values represent mainly the seeing images together with the instrumental images combined with the focus inaccuracy and the guiding error. The last error is probably negligible because of nearly identical FWHM values in both directions. The integration time was 0.3-720 s, but for longer than about 180 s the autoguider was used. The studied objects were sometimes overexposed (10 frames) on the long integrated frames.



tex2html_wrap900

Table 2: Observed images



tex2html_wrap904

Table 2: continued
