5. Post launch addendum

On April 30th 1996 BeppoSAX was successfully launched from Cape Canaveral. Following launch the satellite was commissioned for two months. On June 22 1996 the HPGSPC made its first observation of a celestial X-ray source the black-hole candidate tex2html_wrap_inline2298. At the time of writing the HPGSPC is completing the Science Verification Phase observing a number of well known X-ray source.

  figure727

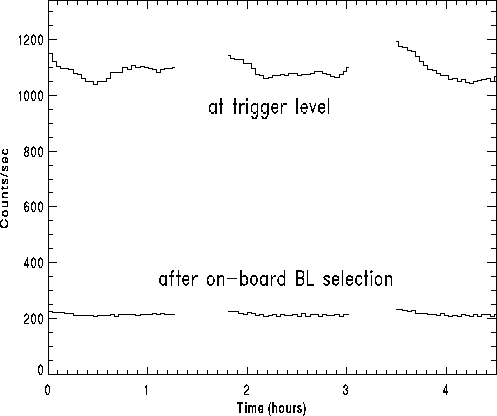

Figure 26: Background count rate observed by the HPGSPC during in flight operation. Three consecutive orbits are shown. The upper curve refers to the count rate measured at the trigger while the bottom curve shows the residual background after on-board burst length selection

Characterisation of background is one of the main goal of the Science Verification Phase. Very preliminary results show that while the count-rate at the Trigger level is about a tex2html_wrap_inline2300 counts/sec after on-board burst length selection the background is reduced to tex2html_wrap_inline2302 counts/sec. Moreover, as can be seen in Fig. 26 (click here) the background is clearly modulated with the orbit. If the FG technique is applied the background count rate is reduced to tex2html_wrap_inline2304 counts/sec in the 40-60 keV band, that means a flux of   tex2html_wrap_inline2308 that confirms what expected on the basis of the on-ground calibration. Unfortunately the background spectrum, reported in Fig. 27 (click here), is highly structured. This is essentially due to a imperfect subtraction of the photons coming from the calibration sources. We are currently working to optimally configure the instrument in order to reduce this effect. A complete in-flight characterisation of the instrument and its performances will be subject of a future paper.

  figure738
Figure 27: Background spectrum as observed by the HPGSPC during the Commissioning Phase. The tex2html_wrap_inline2310 line is due to events from calibration sources not well subtracted. Pb fluorescences are due to the 88 keV component of the tex2html_wrap_inline2312 calibration source
