2. The reconstruction procedure

Our separation method is based on the analysis of one pair of spectra of the system, obtained at two different orbital configurations. Both spectra must be taken out of eclipse or conjunction.

The method is applicable in most general cases (only secondary spectra with emission lines are excluded). We shall see that the extraction procedure requires, to converge, a secondary spectrum containing at least one window of flat continuum, in the observed spectral range.

2.1. The input spectra

Observations at opposite or near-opposite phases are preferable, and at quadratures (opposite elongations) are optimal. So the displacement of secondary lines is almost symmetrical in the two phases, and maximum at quadratures. Conventionally, for the two observed phases tex2html_wrap_inline1264 and tex2html_wrap_inline1266, we use the index 1 to label the phase with the most blue-shifted primary (most red-shifted secondary).

There are no special requirements for the adopted wavelength range tex2html_wrap_inline1268, and for the spectral resolution, except that all instrumental settings must be the same for both spectra. Also the standard intensity-wavelength calibration, and the (optional) continuum-normalization as well, should be initially performed in an identical way.

The procedure is applicable, in principle, even if the input spectra have no recognizable continuum. Practically, in place of the continuum level, each input spectrum tex2html_wrap_inline1270 may be normalized with respect to its average intensity level  tex2html_wrap_inline1272tex2html_wrap_inline1274, coinciding with the continuum only if the integrated contribution of the lines is negligible. However, for simplicity's sake, we shall still use the word continuum instead of the expression average intensity, when describing normalization and renormalization procedures hereafter (e.g. in Sect.2.4).

2.2. The difference spectrum

The first step of the procedure is to compensate for the radial velocity of the primary star in our intensity-normalized spectra. So we get two velocity-corrected spectra tex2html_wrap_inline1280 and tex2html_wrap_inline1282, where each primary line has its laboratory wavelength tex2html_wrap_inline1284.

The composite spectra tex2html_wrap_inline1286 and tex2html_wrap_inline1288 are then subtracted point-by-point one from the other: in this way the primary lines are eliminated (assuming the star is not intrinsically variable), and what we obtain is the difference spectrum
displaymath1290

This special spectrum, which we shall also call S-spectrum, contains - in principle - no trace of primary lines (if the primary velocity has been correctly compensated for); while it shows symmetrical excursions around the zero level (that is now the continuum). Each secondary line is represented by an undulated feature, hereafter named S-profile, which consists of the line itself, flanked by (and possibly merged with) its capsized and shifted replication. Fig. 1 (click here) shows how the S-spectrum is obtained by starting from two spectra observed at near-opposite phases.

  figure237

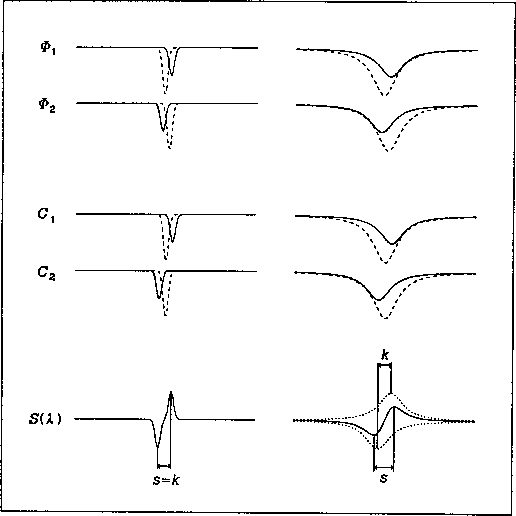

Figure 1: Generation of the S-spectrum (schematic).  Above:  the input spectra tex2html_wrap_inline1296 and tex2html_wrap_inline1298, containing primary (dashed) and secondary (solid) features.  Middle: the shifted spectra tex2html_wrap_inline1300 and tex2html_wrap_inline1302, both with the primary lines at rest-wavelength.  Below: the difference spectrum tex2html_wrap_inline1304-tex2html_wrap_inline1308. Note that stex2html_wrap_inline1312k for merging profiles (right, dotted)

In practical applications, the secondary star is generally much fainter than the primary (up to only 1%); so we shall realistically describe the secondary lines as an additional effect on the input spectra (though the treatment is independent of the secondary brightness). Then, if tex2html_wrap_inline1316 is the spectrum of the primary star at rest (normalized to the continuum of the system), the contribution of the secondary star to the two input spectra can be represented with tex2html_wrap_inline1318 and tex2html_wrap_inline1320, defined by:
displaymath1322
Note that, while tex2html_wrap_inline1324 is a normal spectrum (continuum=1), the functions tex2html_wrap_inline1326 and tex2html_wrap_inline1328 have the form of superimposed perturbations (continuum=0), to be renormalized later (Sect.2.4). With the above definitions, the S-spectrum in Eq.(1) is reduced to:
displaymath1332
where only the secondary signal is left (while the primary tex2html_wrap_inline1334 is cleared off).

Since the twin images tex2html_wrap_inline1336 and -tex2html_wrap_inline1340 of the secondary lines (displaced and mirror-like) are entangled in the S-spectrum above, they should be first separated, re-oriented and shifted, and then recombined. We shall use an iterative method, restoring the line step by step, with an original shift-check-sum technique.

2.3. Reconstruction of a line-profile

We must state beforehand that, if the two images of a line are well separated within the S-profile, without overlapping, clearly each one is representative of the original feature. So, in this case, there is absolutely no problem.

Problems arise, instead, as soon as we want to recover the shape of a line when its original images partially overlap and neutralize each other, so that a merging S-profile is formed. It happens when the width of a line is large with respect to the velocity separation of input phases. In this case, profile restoration is needed.

Our reconstruction procedure starts from the pair of composite spectra tex2html_wrap_inline1350 and tex2html_wrap_inline1352, which through Eq.(1) provide the difference-spectrum tex2html_wrap_inline1354 to be processed. Our purpose is then to derive, in Eq.(2), the form of its constituent functions tex2html_wrap_inline1356 and tex2html_wrap_inline1358. They are symmetrical, because tex2html_wrap_inline1360 is a shifted replication of tex2html_wrap_inline1362. The Doppler shift, corresponding to the difference in radial velocity  tex2html_wrap_inline1364  of the secondary component in the two spectra, will be hereafter indicated by  tex2html_wrap_inline1366.  So, it is identically:
displaymath1368
with k>0 because of our initial choice of indexes.

Let us now assume for simplicity's sake a secondary spectrum having a single spectral line, and being equal to the continuum outside the interval containing that line. Supposing this interval is tex2html_wrap_inline1372 for tex2html_wrap_inline1374; then, according to Eq.(3), it will be tex2html_wrap_inline1376 for tex2html_wrap_inline1378.

It follows that a particular interval  [tex2html_wrap_inline1380  exists, in which  tex2html_wrap_inline1382 displays the line-profile, while we still have tex2html_wrap_inline1384. Therefore, in this interval, from Eq.(2) we can derive tex2html_wrap_inline1386. So, in the interval  [tex2html_wrap_inline1388, both tex2html_wrap_inline1390 and tex2html_wrap_inline1392 are determined.

Then, by knowing tex2html_wrap_inline1394 in the above interval, we are able to compute, from Eq.(3), the values of tex2html_wrap_inline1396 in the new interval  tex2html_wrap_inline1398. Now, in this interval, from Eq.(2) we can also derive tex2html_wrap_inline1400. Thus, in the new interval  [tex2html_wrap_inline1402, both functions tex2html_wrap_inline1404 and tex2html_wrap_inline1406 can be obtained.

This leads through Eq.(3) to the values of tex2html_wrap_inline1408 in the next interval [tex2html_wrap_inline1410, and so on. In such a way, by iteratively applying Eqs.(3) and (2), we are able to reconstruct the whole function tex2html_wrap_inline1412, representing the contribution of the secondary spectrum.

  figure284

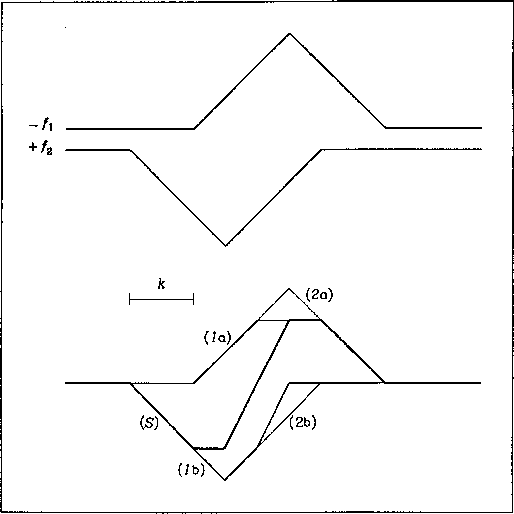

Figure 2: Reconstruction of a line-profile, drawn schematically as a triangle.  Above:  the original line images -tex2html_wrap_inline1416 and tex2html_wrap_inline1418, displaced by the shift k, which are merged into the S-spectrum.  Below:  from the S-spectrum (thick line), the profile restoration is achieved step by step, here in 2 iterations (progressively thinner lines): tex2html_wrap_inline1426= S-profile; (1a) = maxtex2html_wrap_inline1430; (1b) = tex2html_wrap_inline1432; (2a) = maxtex2html_wrap_inline1434; (2b) = tex2html_wrap_inline1436 = original line-profile tex2html_wrap_inline1438. Note.  Index k means that the spectrum is red-shifted by k

The reconstruction can be carried out in a practical way, by repeatedly comparing the S-profile with a shifted and reversed image of itself, which is implemented step by step until the complete line profile is formed. The steps are shown in Fig. 2 (click here), considering a schematic triangle-shaped line. Let us remark how easy the procedure is, involving only elementary operations.

The requested number n of steps is proportional to the width of the feature to be reconstructed. Since each iteration restores only a portion of the profile, and the length of this portion is k, then:
displaymath1450
[tex2html_wrap_inline1452, tex2html_wrap_inline1454] being the total width of the feature. Normally, the integer n is generally a small number (a few units).

This method can be applied also in the general case when the function tex2html_wrap_inline1458 represents a full set of spectral lines, provided that it still contains one window on the flat continuum, wider than k. This interval tex2html_wrap_inline1462, in which tex2html_wrap_inline1464, is the required basis for running our reconstruction procedure; otherwise, the iterations will not converge.

In practice, working with a real spectrum, we can consider that the profile of an isolated line reaches the continuum, outside a suitable interval around its peak. When dealing with an observational S-spectrum, the extremes of our interval can be found, for example, where the far `tails' of S-profile merge into the noise fluctuations of the continuum itself.

2.4. Restoration of the original spectra

Owing to the way it has been defined, the restored function tex2html_wrap_inline1472 describes only the shape of the secondary lines, referring to a `differential' zero-level continuum. Now, a proper renormalization procedure should be established.

The primary spectrum can be isolated, by simply removing the secondary lines from the normalized systemic spectrum tex2html_wrap_inline1474:
displaymath1476
Precisely, tex2html_wrap_inline1478 is the spectrum of the primary star A at the phase tex2html_wrap_inline1482, normalized with respect to the total systemic intensity (that is the tex2html_wrap_inline1484 level).

In order to be consistent with this normalization, the secondary spectrum needs only to be raised back to its original unity-level continuum (formerly the tex2html_wrap_inline1486 level):
displaymath1488
So, tex2html_wrap_inline1490 is the spectrum of the star B at the same phase, normalized to the systemic intensity as well.

Our restoration procedure, if concluded at this point, may already be useful for most practical applications. Let us note, however, that it does not match the standard definition of normalization, which is generally referred to the star's own intensity.

To proceed further, one should know independently the fractional luminosities tex2html_wrap_inline1492 and tex2html_wrap_inline1494 of the two stars (relative height of their continuagif). Assuming for simplicity's sake a small-enough spectral range tex2html_wrap_inline1498 where the luminosities of the two stars may be considered constant, the two original intensity-normalized spectra are then:
displaymath1500
Finally, tex2html_wrap_inline1502 and tex2html_wrap_inline1504 should be correctly shifted in tex2html_wrap_inline1506, to compensate for the orbital motion.

Such fully-restored spectra may be obtained, in principle, for eclipsing binaries, where tex2html_wrap_inline1508 and tex2html_wrap_inline1510 can be accurately measured by occultation spectrophotometry.

The algorithms introduced in this section have been verified by using tests and simulations, applied to artificial line-profiles and modelled binary spectra, which will be shown in Sects.3.1 and 3.2. Finally, an application to a true binary star will be presented in Sect.3.3.

2.5. Quality requirements and implementations

Since the iterative procedure takes n steps, any spurious difference between the input data will be replicated n times (and possibly amplified) onto the processed spectra. For this reason, preliminary cosmetics is necessary, to correct CCD defects and/or to remove cosmic-ray spikes. Moreover, the two observational spectra must be carefully equalized before processing, in order to compensate for possible normalization discrepancies.

It is also convenient to contain the propagation of noise, by applying the minimum possible number of iterations, on those parts of the spectrum which do not need complex reconstruction. Generally, sharp metallic lines are already restored at the first step, while iterations may only reconstruct the profiles of broader lines (e.g. Balmer series).

Our method, as defined above, restores the function tex2html_wrap_inline1518 by proceeding in the sense of increasing wavelength (that is rightward in Fig. 2 (click here)). The quality of the extraction can be improved by applying the symmetric procedure, that is by starting from the reversed difference-spectrum tex2html_wrap_inline1520, and using the opposite shift -k; so we can reconstruct the function tex2html_wrap_inline1524 (performing a leftward restoration). Thus, we can derive a new version of the primary spectrum  tex2html_wrap_inline1526; and finally by averaging (after shift compensation) the two versions of tex2html_wrap_inline1528, we may get a primary spectrum with reduced noise and smaller distortions. Similarly, we can obtain another version for the secondary spectrum  tex2html_wrap_inline1530, allowing us to compute an improved mean-version also for tex2html_wrap_inline1532.

Coaddition of multiple exposures, taken at a given phase, may enhance the S/N ratio. In the same way, by employing different pairs of input phases, more S-spectra can be obtained, providing independent reconstructions: their average will further improve the S/N value.

On the other side, problems may arise when attempting the restoration of cool stellar spectra crowded with overlapping lines, and having a poorly-defined continuum. Similarly, edge distortions may arise in the presence of truncated line-profiles at the extremes of the spectrum.

In synthesis, although the method may work also under unfavourable conditions, its full power is displayed only when applied to high-quality observational spectra. Such data are actually provided by state-of-the-art astronomical instrumentation, particularly concerning highly stable, sensitive and flawless receptors. Quality requirements will be even more compelling for the profile-analysis algorithm introduced below.

2.6. Determination of the k-shift

Our separation method uses the secondary shift k as an input parameter (this also happens, incidentally, for other Doppler-based methods mentioned in Sect.2.1). If some secondary lines are already evident on the input spectra tex2html_wrap_inline1542 and tex2html_wrap_inline1544, the case is trivial since k can be directly measured. On the other side, difficulties may arise when the secondary signal is revealed only after the compensation of primary lines in the S-spectrum.

As shown in Fig. 1 (click here), only for non-merged S-profiles can one take the peak-to-peak distance s as representative of k. Generally, for all merging situations, the assumption k=s is misleading. As a result, the reconstructed lines risk becoming stronger than real (tests in Sect.3.1).

Given the astronomical importance of some situations of merged profiles, we think it is worthwhile studying a way of determining k independently, before performing the spectral reconstruction. Such a derivation of k may be required, for example, in the following cases:  i) when only intermediate phases are available, and the relative Doppler shift may be not large enough to separate, in the S-spectrum, the dual images of metallic lines (gaussian approx.);  ii) when the secondary star is so faint that its metallic lines are not detectable, and in the S-spectrum only overlapping HI lines are seen (lorentzian approx.).

The shape of the S-profile is studied analytically in the appendixA, where a special algorithm is derived. It performs the conversion  tex2html_wrap_inline1568  by assuming a gaussian (or lorentzian) approximation for the secondary lines.

As a straightforward result, the determination of k may allow the computation of the masses of the two components A and B of the system. For example, let us suppose that our S-spectrum is obtained by difference from two opposite quadrature phases, correctly shifted to compensate for the motion of primary lines; then k corresponds to twice the secondary radial-velocity, plus twice the primary radial-velocity (just compensated for). Precisely, for circular orbits, we have: tex2html_wrap_inline1576, where tex2html_wrap_inline1578 and tex2html_wrap_inline1580 are the maximum radial-velocities (barycentric) of the two stars. As tex2html_wrap_inline1582 is well measured from primary lines, the knowledge of k will then provide a preliminary determination of tex2html_wrap_inline1586. This will give us the spectroscopic mass-ratio tex2html_wrap_inline1588 which, combined with other known parameters of the system (e.g., see Batten et al. 1989), may finally provide the masses and other absolute elements of the binary star.
