A short presentation of each object with some
references to earlier photometric studies is given. Numerical data
(Tables 2 and 3) are available only in electronic form at
the CDS via anonymous ftp. Table 2 includes the data observed at Tuorla
with the 1.03 metre telescope (V-band). Table 3 includes data
(B-, V-, and R-bands) observed at the Nordic Optical Telescope (NOT) on
La Palma.
Due to the modest amount of the B- and R-band data, a
detailed analysis for that data was not possible. A few
V-band datapoints observed at the NOT are included in the light curves.
Otherwise the light curves present the V-band data that
was obtained at Tuorla. The
notation
= JD - 2 400 000 is used throughout the
text and in the light curves.
For those objects which have been targets of large multifrequency campaigns, detailed analysis and numerical data can be found from the following articles: Takalo et al. ([1998]) (AO 0235+164); Raiteri et al. ([1999]) (S4 0954+658); Tosti et al. ([1998]a) (Mrk 421); Tosti et al. ([1998]b) (ON 231).
S2 0109+224 (PKS 0109+224) was first
identified optically by Owen & Mufson ([1977]).
The largest brightness variations in the historical light curve
occurred in 1943: a drop of 3.07 mag during one year
(Pica [1977]).
Typical for S2 0109+224 have been
one mag flux variations on a timescale of 1 - 2 years. The
average brightness in the B-band has been 16.41 mag, and
flickering of 0.6 - 0.7 mag has been observed by Pica
et al. ([1988]).

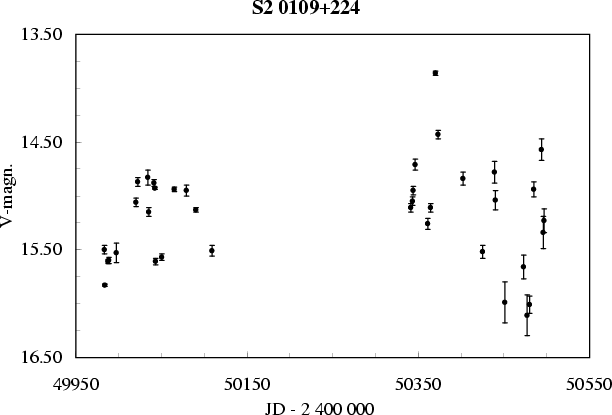

The brightness in the V-band varied during our observations by between
13.86 and 15.83 mag. Rapid flux variations were seen
frequently (Fig. 1).
S2 0109+224 was exceptionally bright during 1996-1997
(
50340 - 50500) compared to the
earlier monitoring campaigns (Pica et al. [1988];
Sillanpää et al. [1988]a;
Takalo [1991]; Xie et al. [1994]; Villata et al.
[1997]; Raiteri et al. [1998]).
The maximum, 13.86 (
50370), is one of the brightest
V-band values measured for this object.

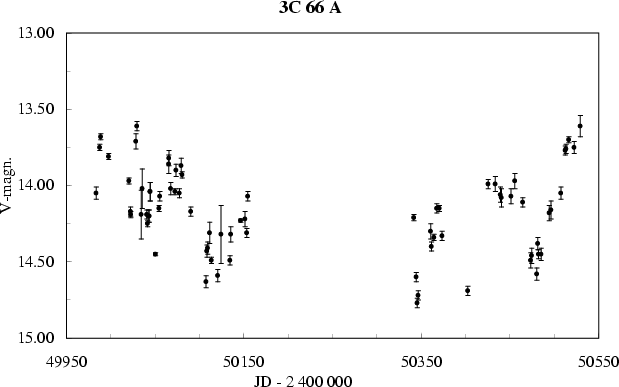

The light curve of 3C 66A (Fig. 2) shows
continuous 0.2- 0.3 mag variations. One of the
brightest V-band mag ever for 3C 66A, 13.61,
was measured on November 1995 (
50029) and
also on March 1997 (
50529). By studying
the light curve (Fig. 2) it seems that the local
minima occur about every 60 - 70 days.
Stronger evidence for periodicity of about 65 days can be found in
the analysis made by Lainela et al. ([1999]).
OF 038 (PKS 0422+004) was first classified as a BL Lac object
by Kinman ([1976]a, [1976]b). Eachus & Liller
([1975]) found from
Harvard College Observatory's Plate archive that the total amplitude variation
was 3 mag. Burbidge & Hewitt ([1989])
observed the faintest known V-band magnitude, 17.0.
The average B-band brightness in Rosemary Hill
Observatory's long term monitoring (Pica et al. [1988]) was 16.05 mag.
Fast 0.3 mag flux variations have been typical for this object
during observations by Xie et al. ([1994] and references therein). The
brightest V-band measurement has been made by
Massaro et al. ([1996]), V=13.65 on November 1994.

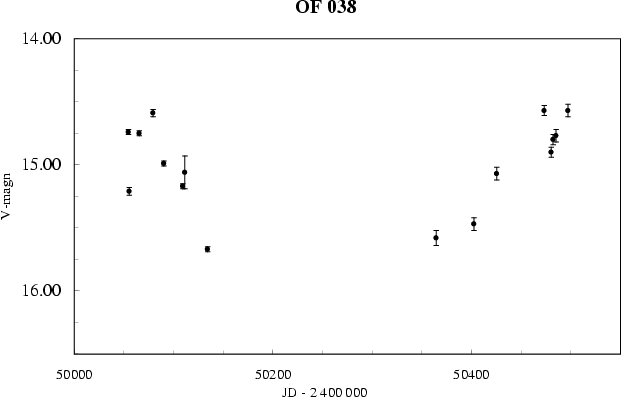

Our OF 038 light curve (Fig. 3) showed a fading of almost
one mag during two months in 1996 (
50090 and
50134). During the next observing season
(1996-1997) the flux of OF 038 rose continuously and reached 14.57
mag twice (
50473 and
50497).
The faintest V-band measurement was 15.67 mag (
50134).
S5 0716+714 is a radio-loud flat-spectrum source
discovered in the Bonn-NRAO radio survey (Kühr et al. [1981],
[1987]). It
was classified as a BL Lac object by Biermann et al. ([1981]), who
measured two photographic
magnitudes (13.2 and 15.5) from the POSS plates.
During the 1990's this source has been intensively studied at all
frequencies.
Quirrenbach et al. ([1991]) noticed correlated radio and
optical changes on timescales of a few days. Wagner et al. ([1996])
reported rapid variations over the whole
electromagnetic spectrum. S5 0716+714 is a strong
EGRET-source and its -flux has shown considerable variability
(Lin et al. [1995]).

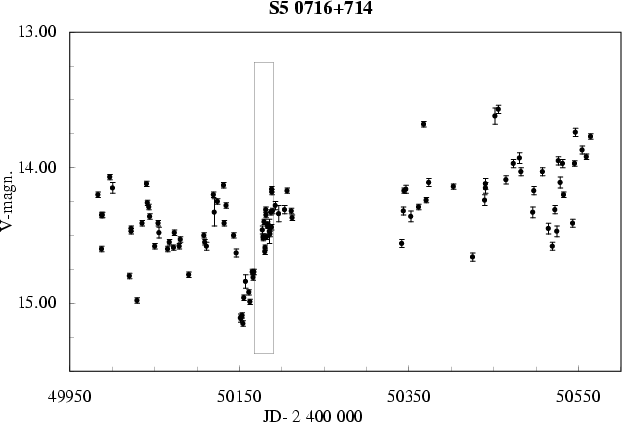

The light curve of S5 0716+714 (Fig. 4) is one of the best sampled
among our objects.
Our V-band light curve shows a "sawtooth''-pattern.
It is interesting to notice in our data that the maximum points in
the light curve (Fig. 4) seem
to occur with a period of 60-70 days. These values,
14.07, 14.12, 14.13 and 14.16, during 1995-1996 observations, have
only 0.09 mag deviation.
The average brightness of S5 0716+714
was rising during 1996-1997. The minimum
value of our light curve is 15.15 (
50134), and the
maximum 13.57 (
50455). A small part of
observations were simultaneous with one EGRET pointing of
S5 0716+714 (marked with the box in Fig. 4).
PKS 0735+178 (OI 158) was first optically identified by Blake ([1970]) as a 16th mag blue stellar-like object. The optical brightness has varied between 13.90 and 17.72 mag in the B-band (Pollock et al. [1979]; Xie et al. [1994] and references therein).
The brightness of PKS 0735+178 was near 15.5 during winter 1996,
until on February 1996 the object started to fade.
The object reached 15.5 level again in late March 1997.

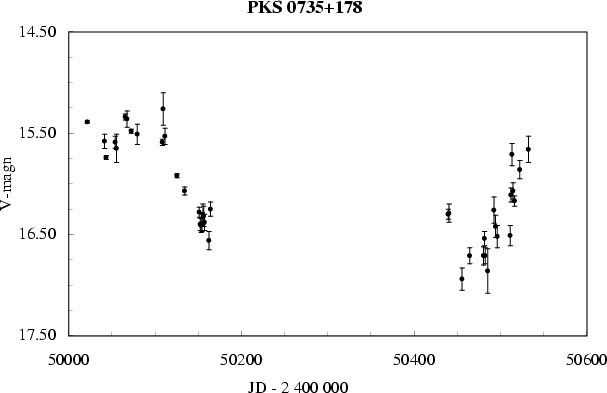

The maximum V-band brightness during our observations was 15.26
(
50109) and the minimum
16.94 (
50455) (Fig. 5).

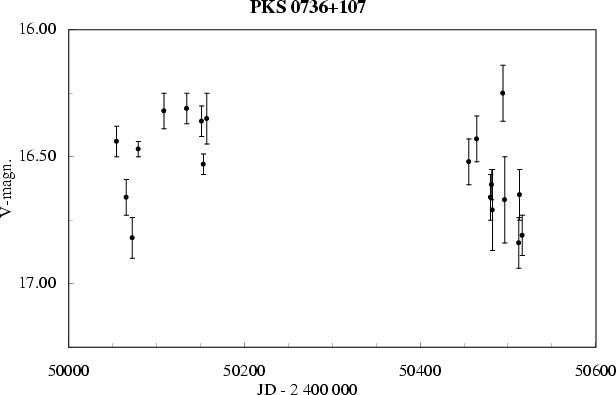

PKS 0736+107 (OI 061) is classified as a high polarization quasar, HPQ. McGimsey et al. ([1975]) observed one mag optical variations in PKS 0736+107. Pica et al. ([1980], [1988]) reported 0.7 mag fades and flares and found from photographic plates that historically the brightness had been between mag 15.45 and 16.80 in the B-band.
During our observations between 1995 and 1997 the brightness
varied between 16.25 (
50494)
and 16.84 (
50512) mag (Fig. 6).

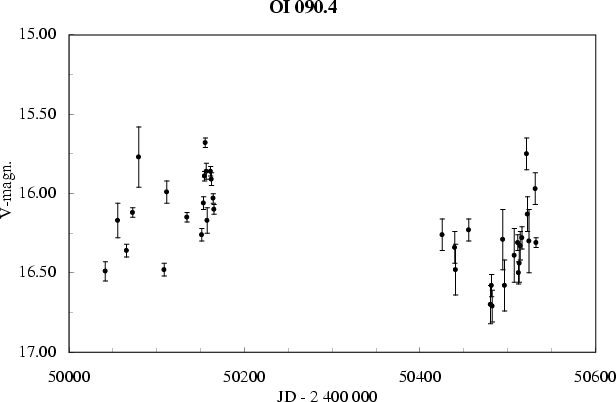

OI 090.4 (PKS 0754+110) was identified as a BL Lac-object by Tapia et al. ([1977]). Its historical light curve has been studied by Baumert ([1980]), who found 0.8 mag variations on timescales of a few days and a variability of 2 mag in a few years. Pica et al. ([1988]) observed 0.8 magnitude (B-band) changes on a 2 year timescale. Zekl et al. ([1981]) reported on 2 mag fluctuations in the B-band. Sillanpää et al. ([1991]) observed 0.9 mag variations in the V-band. Smith et al. ([1987]) have measured V=16.31, which has been so far the faintest V-band value for this object.
During winter 1996 and winter 1997 the
average brightness was between 16 and 16.5 (Fig. 7).
The minimum, 16.71, (
50482) was observed on
February 1997 and
is one the faintest V-band measurement for this object
(see references above) ever. The brightest V-band value measured was
15.68 (
50155).
OJ 287 (PKS 0851+202) is one of the most studied
extragalactic objects from radio frequencies to X-ray frequencies. It was
first
optically identified by Blake ([1970]) as a 14.5 B-magnitude
stellar-like object.
OJ 287 has been the target of many optical observations since
the 1970's, including long-term optical monitoring programs, such as
the one at Rosemary Hill Observatory (Webb et al. [1988]),
where over 5 mag B-band variations have been measured.
Craine ([1977]) reported that the brightness of OJ 287 in the V-band
has varied between 12.7 and 15.6.
For a complete historical overview of this object see
Takalo ([1994]). Sillanpää et al.
([1988]a) measured values from 12.64 to 15.50 mag in the
V-band
between 1982 and 1984.
During those observations this source was in an outburst state.
Previous large outbursts had happened in 1911, 1937, 1947, 1954 and
1971/1972.
Analysing this historical light curve Sillanpää et al.
([1988]b)
demonstrated that the outbursts have a period of 12 years,
and explained this behaviour by a supermassive binary black hole model.
They also predicted that OJ 287 should be in an outburst
state again during years 1994 and 1995. This was confirmed by
the observations in the OJ-94 project (see Sillanpää et al.
[1996]a-c).

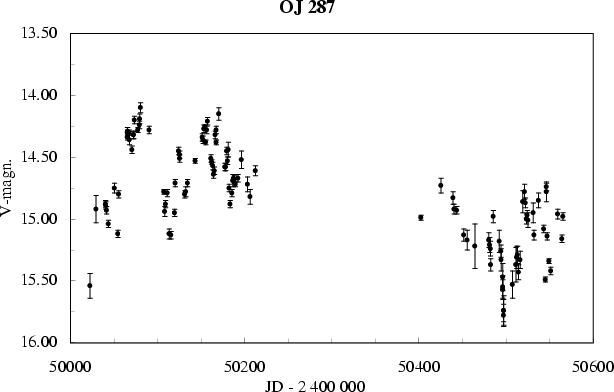

The OJ 287 observations presented here cover the second peak
(1.2 years after the first peak) of the predicted outburst (Sillanpää
et al. [1996]a-c). The
V-band brightness reached
14.10 on 28 December 1995 (
50080) (Fig. 8), and 14.15
was reached on 27 March 1996 (
50170).
During the next observing season, winter 1997 OJ 287 became
gradually fainter, and the brightness dropped rapidly 0.8 mag
in 12 days on February 1997, when a minimum, 15.78
(
50497), was reached.

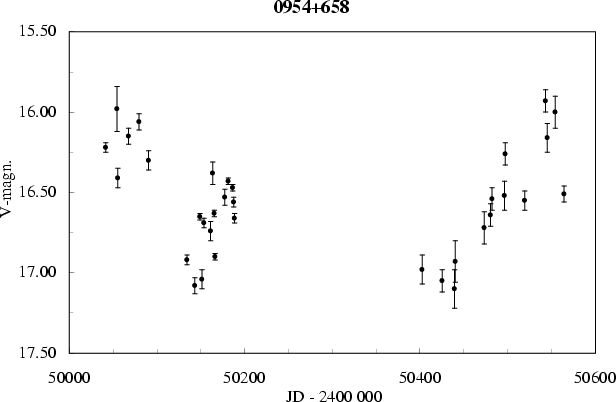

The radio source S4 0954+658 (Pauliny-Toth et al. [1978]) has been monitored quite intensively by Wagner et al. ([1993]), Heidt ([1993]) and Raiteri et al. ([1999]). It has been classified as an intraday variable (IDV) in the radio and optical regions.
Numerical data and a detailed analysis of our S4 0954+658 observations is published by Raiteri et al. ([1999]), and only the light curve is presented here (Fig. 9).

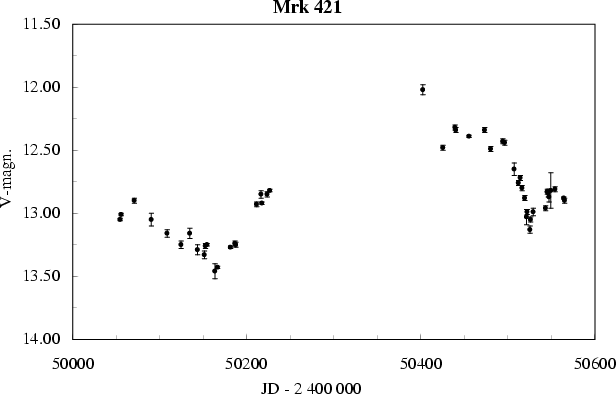

Mrk 421 (Markarian & Lipovetsky [1972]) has shown strong and rapid TeV-outbursts several times (e.g. Schubnell et al. [1996]; Petry et al. [1996]). Our data and analysis of the optical behaviour of Mrk 421 are presented by Tosti et al. ([1998]a) and hence only the light curve is shown (Fig. 10).
OM 280 (QSO 1147+245) is classified as a BL Lac object
(Angel & Stockmann [1980]).
The amplitude of the B-band variability has been about 0.8 mag,
with the average brightness 16.6 during
1981-1986 (Pica et al. [1988]). Zekl et al. ([1981]) reported
0.4 mag variations in the B-band. Moles et al. ([1985])
measured
16.02 as the average brightness in the V-band. During the recent years
Fiorucci & Tosti ([1996]b) reported that the V-band brightness
was 16.15 as an average.

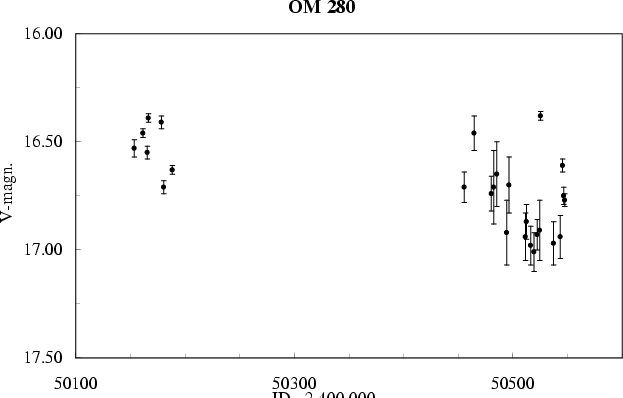

Our data indicate that the brightness in the V-band was
near 16.5 mag during winter 1996 and
between 16.5 and 17.0 during winter 1997 (Fig. 11).
The brightest V-band value was
16.38 (
50525) and the
faintest 17.01 (
50519) mag.
4C 29.45 (PKS 1156+295) belongs among to the most variable
OVV-quasars. Studies of photographic plates have shown that the average
brightness of this object has been 16 mag in the B-band.
On March 1981 it had
an outburst of 5 mag, starting from B = 18 and rising up to
13.15 (Wills et al. 1983). In 1985 a 2.5 mag outburst
occurred (Miller [1985]). 4C 29.45 is a strong GeV-source
(Thompson et al. [1995]; Webb et al. [1995]).
The V-band brightness
of 4C 29.45 varied between 16.12 (
50125)
and 16.68 (
50134 and
50143) during
1995-1996.
In winter 1997 we observed only two datapoints (15.45)
(
50455) and 17.05 (
50480 mag)
for this object. Due to small number of
data (Table 2) no light curve is shown.

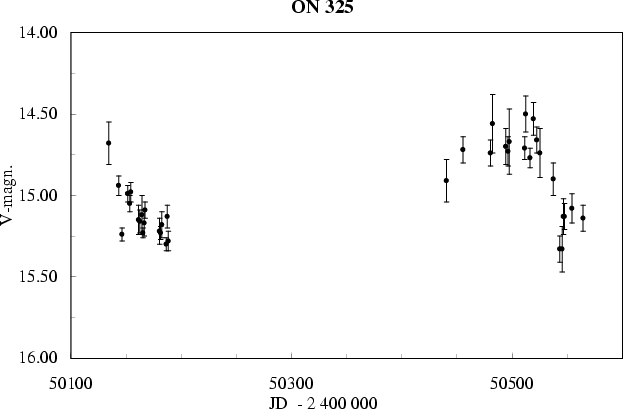

ON 325 (PKS 1215+303) was identified as a quasar by Browne ([1971]), and confirmed by Veron & Veron ([1973]). It was later classified as a BL Lac object. Veron & Veron ([1975]) reported 2.7 mag (14.3 - 17.0) changes in the B-band. Observations made at Rosemary Hill Observatory during 16 years (Pica et al. [1988]) showed over 2 mag B-band variations with an average brightness of 15.7. At least in 1974, 1977, 1980, 1985, and 1986, over one magnitude outbursts have occured. Zekl et al. ([1981]) reported that the brightness of this source has historically been between 13.7 and 17.0 mag in the B-band.
The data from the first observing season (1995-1996)
show (Fig. 12) a smooth decrease in brightness from 14.7 to
15.3 mag. Observations during winter
1997 show a maximum point in the light curve, 14.50 mag
(
50512) and a fade from that to 15.33
(
50543), the minimum in our ON 325 observations.

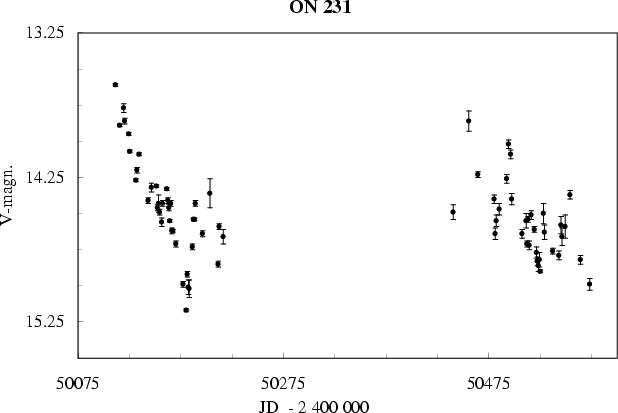

ON 231 (QSO 1219+285) was identified by Browne ([1971]) and Biraud ([1971]) as a stellar like object, which was the same as the variable star W Comae. Historical light curve has been studied by Liu et al. ([1995]).
Our ON 231 data are published and analysed by Tosti et al. ([1998]b), so only the light curve is presented (Fig. 13).

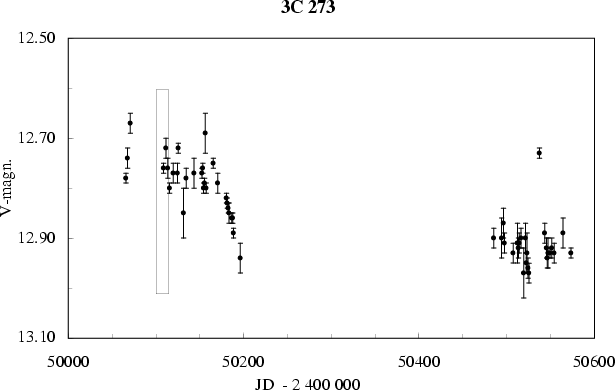

3C 273 (PKS 1226+02) was the first QSO discovered. It is classified as a low polarization quasar (LPQ). The optical variations are usually relatively small, even the total brightness variation amplitude has been less than one magnitude (Pica et al. [1988]; Sillanpää et al. [1988]a). In 1983 brightness reached 12.17 mag in the V-band (Sillanpää et al. [1988]a). Studies by Fiorucci & Tosti ([1996]b) and Villata et al. ([1997]) did not show any large optical variations.
During our observations on December 1995 3C 273 was brightening
rapidly (Fig. 14) (between
50065 and
50070). On January 1996 the object did not show a
continuation of this trend. Part of the observations on January and
February 1996 were simultaneous with an EGRET-pointing (marked
with a box in Fig. 14).
In early April 1996 (
50157) 3C 273
started to fade from
mag 12.8 towards mag 13. The shape of our V-band light curve
observed during winter 1996 is also in agreement with the R-band
variations observed by Raiteri et al. ([1998]) during the same
period.
Observations during winter 1997 did not show large flares, the
brightness was near 12.9 mag. The maximum V-band brightness during
years 1995 and 1997 was 12.67
(
50070) and the minimum 12.97
(
50519 and
50525) mag.

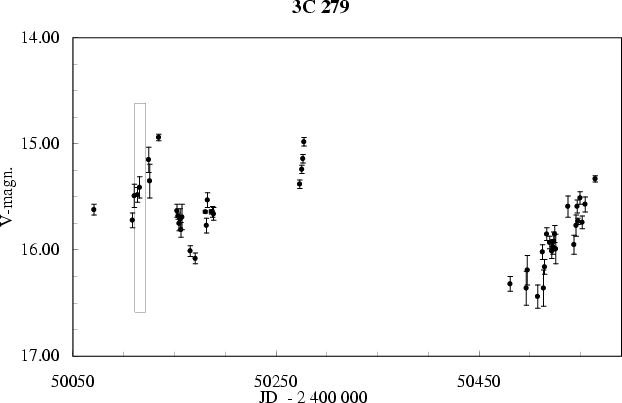

3C 279 (PKS 1253-055) is a high polarization quasar (HPQ) and one of the
most violent variable sources in the sky, showing 8
mag variations in its historical light curve (Webb et al.
[1990]).
3C 279 had large outbursts at least during 1936, 1938,
1987, and 1992.
Normally the variation amplitude in the optical region has been about 2 mag.
This object is one of the strongest EGRET -ray sources
(Thompson et al. [1995]; Wehrle et al. [1998]).
Several 3C 279 datapoints are simultaneous with an EGRET
pointing (marked with a box in Fig. 15). On January and February 1996
(
50100) 3C 279 was
brightening rapidly in optical. The EGRET pointing
on February 1996 showed
also a fast rise in the GeV
-ray flux.
The results of the multifrequency campaign during this particular
-flare are studied by Wehrle et al. ([1998]).
The optical brightening was over on March and the object faded to
V-magnitude 16.
The four datapoints in the
light curve (Fig. 15) between
50273 and
50277 have been observed
at the NOT in summer 1996. They show that
3C 279 brightened 0.4 mag in four days.
Observations during winter 1997 showed that 3C 279 was
fainter than mag 16. The brightness rose in spring 1997,
reaching mag 15.2.
The maximum (V-band) brightness during our observations was
14.94 (
50134) and the minimum (
50507) 16.44.
PKS 1424+240 is a radio source which was identified as a blazar by Impey & Tapia ([1988]). Originally it was classified as a white dwarf in the Palomar-Green Survey. Studies by Fleming et al. ([1993]) from Rosat All Sky Survey (RASS) showed PG 1424+240 to be a BL Lac object. Fiorucci & Tosti ([1996]b) reported that the brightness in the R-band was about 14.3 mag.

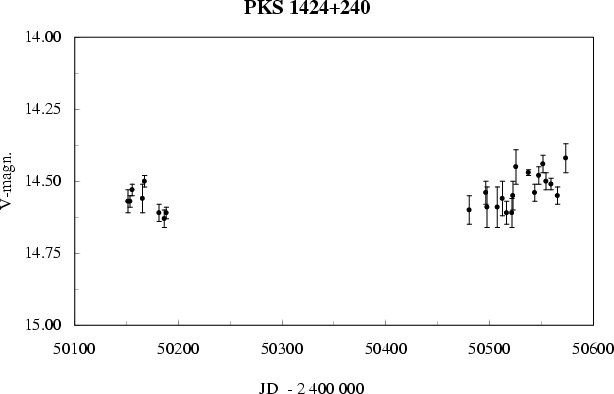

During our PKS 1424+240 observations the average V-band
magnitude was 14.5 (Fig. 16).
The range of variation was quite
small, which is in agreement with the earlier observations of Fiorucci
& Tosti ([1996]b).
The minimum value for the brightness was 14.63
50186)
and the maximum 14.42 (
50573).
4C 38.41 (QSO 1633+38) is classified as a quasar in some references. Mattox et al. ([1993]) classified it as an OVV quasar. It faded over 3 mag, according to the observations of Barbieri et al. ([1977]), between years 1969 and 1976. It is a strong EGRET source (Mattox et al. [1993]; Fichtel et al. [1994]; Thompson et al. [1995]).
We observed 4C 38.41 several times in Tuorla during
1995-1997.
The observations showed that the object was at first
in a faint state, 17.55 mag (minimum). By the next winter the
brightness had risen to mag 16 (maximum 15.94 at
50531), from which it faded
to 17.35 (
50554). Due to the small number of
data (Table 2) no light curve is shown.
3C 345 (S4 1641+399) was classified as an OVV quasar by Penston
& Cannon ([1970]). Typical for this object have been about 2
mag outbursts, which occur quite frequently. Such large outbursts
happened in 1967/1968, 1971/1972, 1982/1983, and
1991/1992 (Schramm et al. [1993]). Sillanpää et al.
([1988]a) measured
V=14.56 in 1982, while Schramm et al. ([1993])
observed V-band brightness near 18 mag in 1989. In
1991/1992 a large 2.5 mag outburst
was observed (Schramm et al. [1993]). Kidger & Takalo
([1990]) observed
the historical minimum B=18.66.

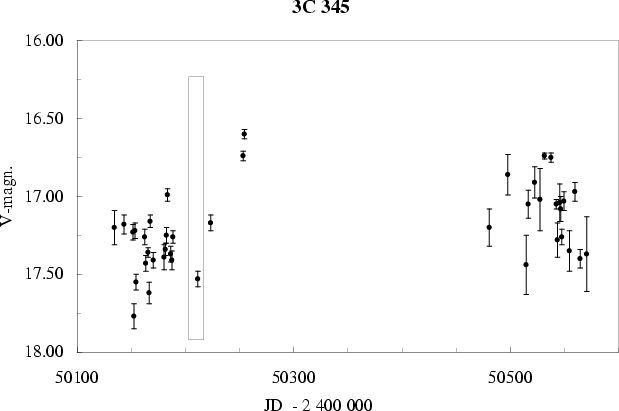

During our observations the average
brightness of 3C 345 was fainter than mag 17 (Fig. 17).
In winter 1996 we observed several 0.5 mag brightenings
in a timescale of a few days.
An EGRET-pointing during our
optical observations is marked with a box in Fig. 17.
The minimum value for the brightness was 17.77 (
50152),
and the maximum 16.60 (
50254, observed
at the NOT on June 1996).
Strong continuum emission from the nucleus of
OT 546 (PKS 1727+502, ZW I 187) was first noticed by Zwicky
([1966]). Optical variations of this object were reported by Sandage
([1967]). Angel & Stockmann ([1980]) classified it as a BL
Lac object. Its historical light curve shows variations
between mag 14.8 and 16.9 in the B-band (Hall & Usher [1972]).
The average brightness in the V-band has been near mag 16
(Kinman [1976]b). The light curves
from Rosemary Hill Observatory observations between years
1975 and 1987 show 0.8 mag variations, with the average B
16.7
(Pica et al. [1988]).

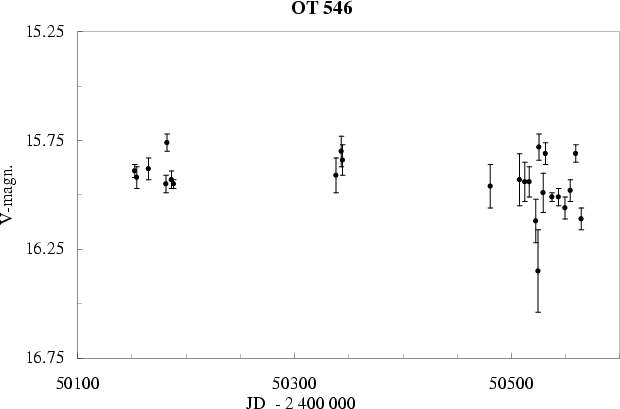

During our V-band observations,
the brightness varied between mag 15.76 (
50182)
and 16.35 (
50524) (Fig. 18). The faintest
datapoint, 16.35 has, however, fairly
large errors 0.19 mag. Using the second faintest measurement,
16.12, to calculate the total range of flux variation, the amplitude is only
0.36 mag.
3C 371 (S4 1807+69) is a BL Lac object in a large
elliptical galaxy whose emission is dominated by the flux from the nucleus.
Earlier it was classified as an N galaxy. Observations by Sandage
([1967]) showed that 3C 371 was optically variable.

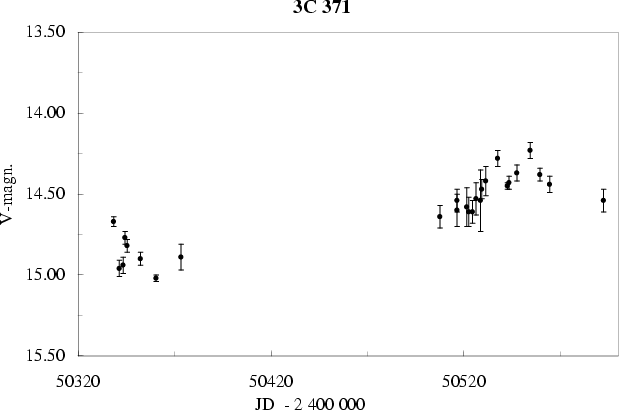

The brightness in the V-band was between 14.6 and 15.0 mag
in autumn 1996 (Fig. 19).
In spring 1997 (
50520)
the brightness was
rising towards mag 14.3. The minimum brightness was 15.02
(
50360) and the maximum
14.23 (
50554).
BL Lacertae (PKS 2200+420) is the prototype of all BL Lac objects. Originally it was classified as a variable star in the 1920's. Its historical light curve shows a measured brightness of between 12.5 and 16.5 mag in the B-band (Shen & Usher [1970]). The average brightness in the V-band has been between mag 14 and 15 (Webb et al. [1988]; Moles et al. [1985]; Sillanpää et al. [1988]a).

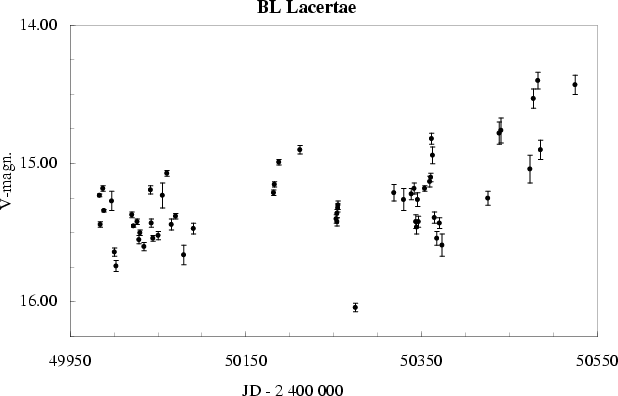

Our light curve does not show (Fig. 20)
any quiescent state at all. The brightness has fluctuated continuously,
typically 0.2 - 0.3 mag in a timescale of a
few days.
The maximum V-band brightness during our monitoring was 14.40
(
50482) and
the minimum 16.04 (
50274).
The average brightness of BL Lacertae was rising during our
observations between 1995 and 1997. It
culminated in summer 1997 (after the observations presented here)
when BL Lacertae had a large outburst (Webb et al. [1998]).
4C 31.36 (QSO 2201+315) is a 4C-radio catalog object
(Pilkington & Scott [1965])
and has been classified as a low polarization quasar, LPQ.
It was first optically identified by Tritton et al. ([1973]). Its
brightness has normally varied between mag 15 and 16 in the B-band
(Tritton et al. [1973]).
Pica et al. ([1988]) reported variations of 0.77 mag.
During our monitoring (Fig. 21) 4C 31.36 had modest
amplitude variations and only one possible major flare was recorded, a
0.41 mag brightening on December 1995 (
50055).
The maximum value
of the brightness was 15.26 (
50055) and the minimum
15.89 (
50079). In general, excluding that one
flare (only two datapoints), the variations of this object were small,
which was expected for a low polarization quasar (LPQ).
CTA 102 (PKS 2230+11) is a high polarization quasar, HPQ
(Sandage & Wyndham [1965]). Pica et al. ([1988]) reported
17.66 mag
as the long-term average brightness in the B-band and 1.14 mag as
the variability amplitude. It is also a strong -ray
source (Blom et al. [1995]; Thompson et al. [1995]; Lin et al.
[1996]). Recent
optical monitoring results, for example by Villata et al. ([1997]),
and Raiteri et al. ([1998]), showed that the brightness variations
of CTA 102 were small.
Our CTA 102 observations show one very large and rapid
flare: 1.13 mag on a timescale of 3 days (
50346) (Fig. 22 and Table 2). The 1.13 mag brightening
is based on measurements from three separate images.
More evidence for this very rapid and violent outburst can be
found in the light curve by Tornikoski et al. ([1999]) who also
detected the flare. The maximum V-band brightness during our
observations was 15.23 (
50346) and the minimum 17.24
(
50050).
3C 454.3 (PKS 2251+15) is a strongly variable high polarization
quasar, HPQ. It can also be classified as an OVV quasar.
Its B-band brightness has often been between mag 16 and 17
(Webb et al. [1988]; Sillanpää et al. [1988]a).
The latest monitoring results are by Villata et al. ([1997]) and
Raiteri et al. ([1998]). During those observations 3C 454.3
showed 0.4 mag variations in the R-band, and only 0.12 mag
in the V-band.
3C 454.3 is a strong EGRET source (Blom et al. [1995]; Thompson et al.
[1995]).

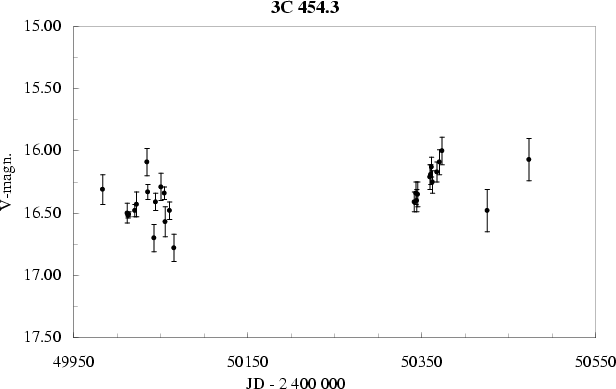

During our observations, the object showed frequent small amplitude
variations (Fig. 23). The maximum V-band brightness was 16.00
(
50373) and the minimum
16.78 (
50065).
OY 091 (PKS 2254+07) is a BL Lac object. Its historical brightness variations have been 1.6 mag according to Pollock ([1975]). Pica et al. ([1988]) reported on 2.37 mag variations during 1.39 years. In 1981 1.8 mag outburst was detected. After that flare the brightness faded 1.3 mag in 18 days (B-band) and continued fading to mag 18 where the brightness stayed for years (Pica et al. [1988]).

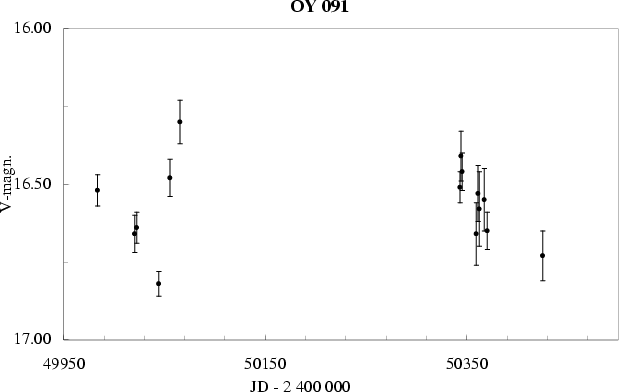

During our observations the maximum V-band brightness value (Fig. 24)
was 16.30 (
50065) and minimum 16.82
(
50044 mag). Due to the limited number of datapoints
a more detailed analysis is not possible.
Copyright The European Southern Observatory (ESO)
