Appendix II. Key numbers to levels

This Appendix contains 7 tables with key numbers to the considered energy levels of Fe XVII-Fe XXIV and one table with a key to transitions in some H- & He-like ions and their satellites. The level numbers are based on a convention introduced by D.A. Liedahl in his calculations with the HULLAC code. This convention is mostly followed in indentifications of the lines in the Fe L complex in the current MEKAL code.

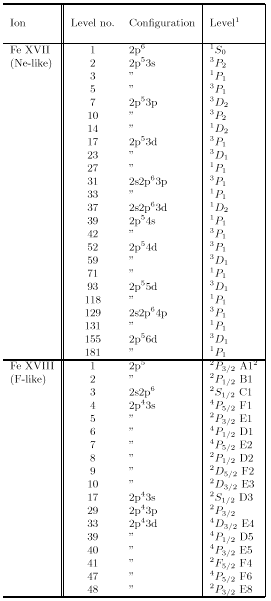

Table A12: Level notations for Fe XVII-Fe XXIV

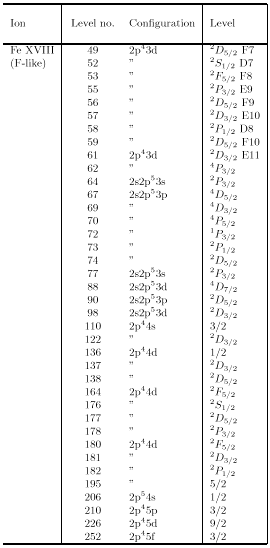

Table A13: Level notations for Fe XVII-Fe XXIV (continued)

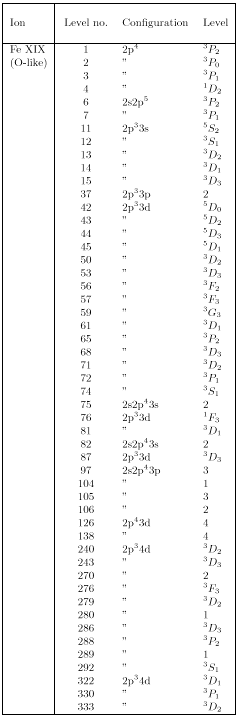

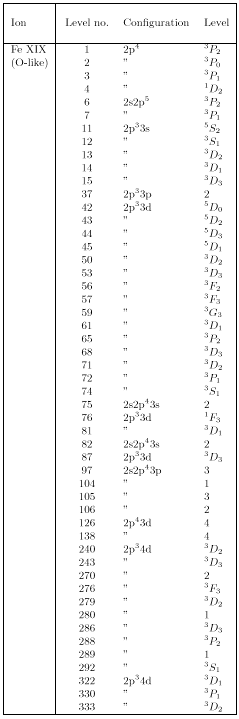

Table A14: Level notations for Fe XVII-Fe XXIV (continued)

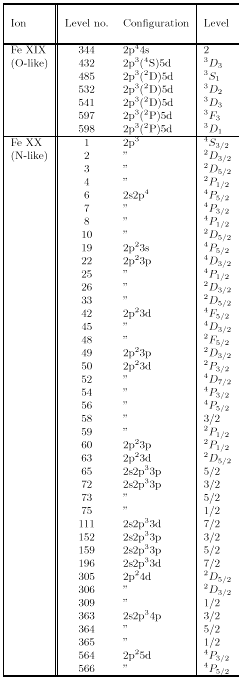

Table A15: Level notations for Fe XVII-Fe XXIV (continued)



Table A16: Level notations for Fe XVII-Fe XXIV (continued)

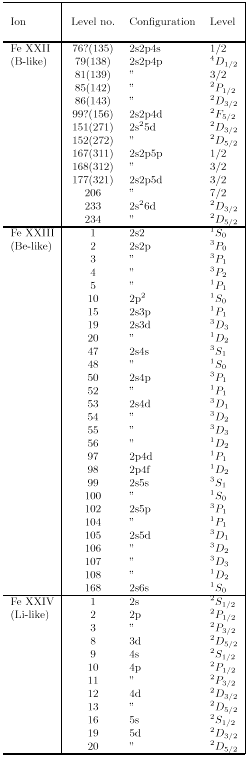

Table A17: Level notations for Fe XVII-Fe XXIV (continued)



Table A18: Key to transitions for H- & He-like ions⁴
