Appendix A: Kinematic profiles

Velocity dispersion profiles (VDPs) and rotation curves (RCs) for the 12 galaxies. The major-axis PA points from left to right in the figures, that is, the right hand side in the plots corresponds to the easterly half of the galaxies major-axis.

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig1336.eps}}\end{figure}$

Figure A1: NGC 1336

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig1339.eps}}\end{figure}$

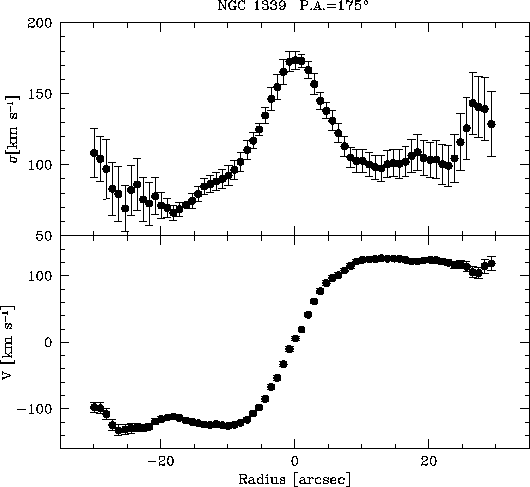

Figure A2: NGC 1339

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig136.eps}}\end{figure}$

Figure A3: FCC 136

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig1373.eps}}\end{figure}$

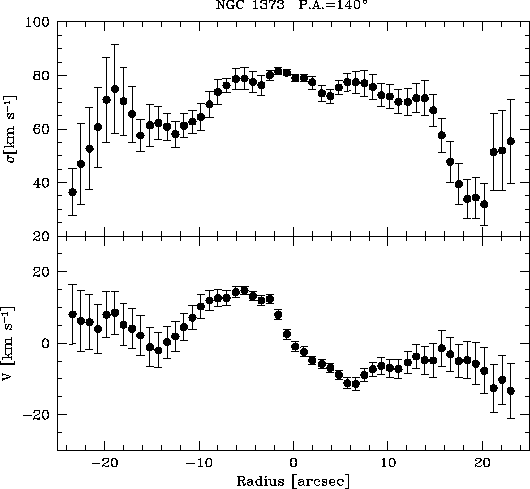

Figure A4: NGC 1373

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig1374.eps}}\end{figure}$

Figure A5: NGC 1374

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig1379.eps}}\end{figure}$

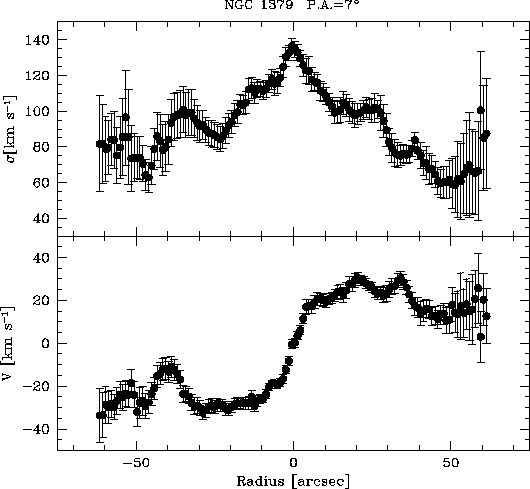

Figure A6: NGC 1379

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig1399.eps}}\end{figure}$

Figure A7: NGC 1399

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig1404.eps}}\end{figure}$

Figure A8: NGC 1404

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig1419.eps}}\end{figure}$

Figure A9: NGC 1419

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig1427.eps}}\end{figure}$

Figure A10: NGC 1427

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig1428.eps}}\end{figure}$

Figure A11: NGC 1428

$\begin{figure} \resizebox {8.8cm}{!}{\includegraphics{ds7478-fig335.eps}}\end{figure}$

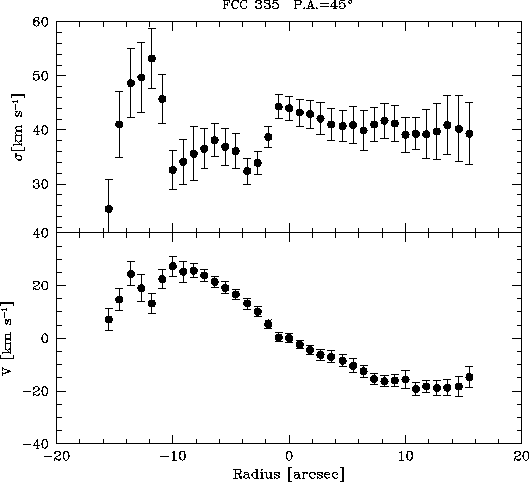

Figure A12: FCC 335
