1. Introduction

In a few years from now the LBT (Strittmatter 1988; McCarthy et al. 1988) will be available for optical interferometry. The LBT will consist of two 8.4 m telescopes on a common mount with the mirrors only 14.4 m apart from center to center. Therefore, excellent uv-coverage can be obtained. The largest baseline is 22.8 m and the angular resolution 1.22tex2html_wrap_inline1366 of this interferometer is 6.1 milli-arcsec at tex2html_wrap_inline1368 nm, i.e., 22.8 m/2.4 m = 9.5 times higher than the resolution of the HST at the same wavelength.

At tex2html_wrap_inline1370 nm the speckles in the LBT interferograms have a width of about 1.22tex2html_wrap_inline1372 tex2html_wrap_inline1374 6.1 mas and a length (corresponding to the 8.4 m mirror diameter) of about 16.5 mas. The number of speckles is approximately equal to the number of turbulence cells in front of the telescopes. For example, for a Fried parameter tex2html_wrap_inline1376 cm (tex2html_wrap_inline1378 0.35 arcsec seeing) and an 8 m class telescope, the number of speckles is about 400 per interferogram.

In this paper we present the theory and computer and laboratory simulations of interferometric speckle masking imaging with the LBT. Diffraction-limited images were reconstructed by a combination of a modified version of the speckle masking method (Weigelt 1977; Weigelt & Wirnitzer 1983; Lohmann et al. 1983; Reinheimer & Weigelt 1990; Reinheimer et al. 1993) and the building block method (Hofmann & Weigelt 1990; Hofmann & Weigelt 1993).

  figure232
Figure 1: Time dependence of the LBT uv-coverage tex2html_wrap_inline1382: the two shaded areas are the uv-coverages at two different times tex2html_wrap_inline1386 and tex2html_wrap_inline1388

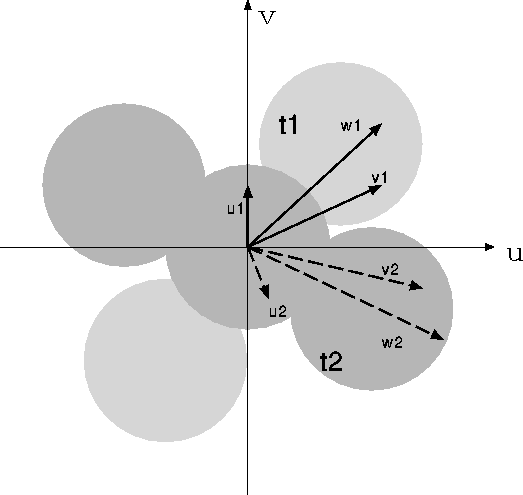

  figure239
Figure 2: Time dependence of the LBT uv-coverage and its influence on the bispectrum coverage (see text)

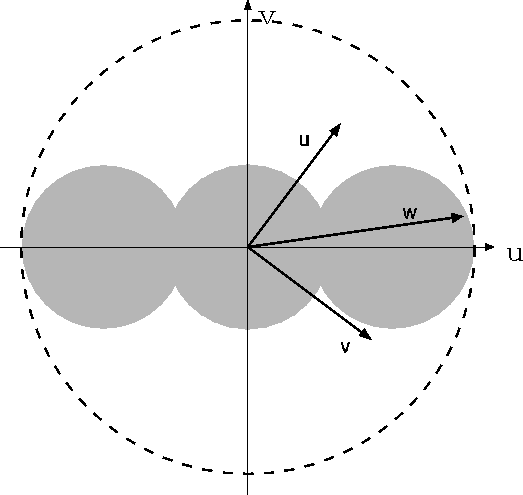

  figure246
Figure 3: Calculation of the bispectrum for complete and diluted uv-coverage. In the case of the LBT and the shown instantaneous uv-coverage, only bispectrum elements with u-vector, v-vector, and w-vector within the dark shaded area can be measured. For example, the bispectrum element corresponding to the shown vector triple cannot be measured during the shown LBT uv-coverage or other times, but it can be measured with a single-dish 22 m telescope.
